Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-65967NLTXFRMR T3/DS3/E3/STS-1 1:1 SMD Pulse Electronics |
1,247 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|
|
PE-65967NLTRANSFORMER TELECOM SINGLE T3/E4 Pulse Electronics |
857 |
|
Datasheet |
- | Tube | Obsolete | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|
|
PE-65968NLTRANSFORMER TELECOM SINGLE T3/E4 Pulse Electronics |
192 |
|
Datasheet |
- | Tube | Active | T3/E3 (Single) | 19µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|
PE-65540NLXFRMR 64KBPS 1CT:1 10MH T/H Pulse Electronics |
4,478 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 10mH | - | 1CT:1 | Through Hole | 0.559" L x 0.559" W (14.20mm x 14.20mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|

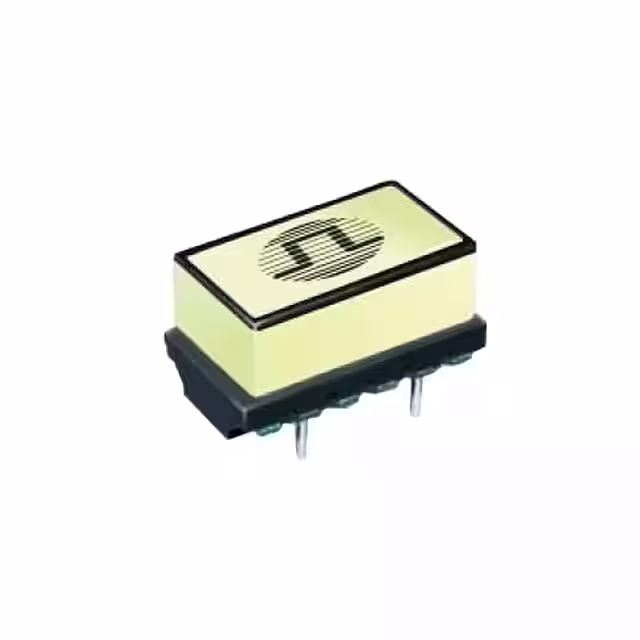

B8813NLPULSE XFMR ADSL/VDSL2 Pulse Electronics |
137 |
|
Datasheet |
SmartER Splitter™ | Tray | Obsolete | ADSL, VDSL | - | - | - | Through Hole | 0.551" L x 0.996" W (14.00mm x 25.30mm) | 0.551" (14.00mm) | - | - | - |
|
HMU2102NLTMDL, DUAL, XFMR-CMC, 1:1, 4.3KV, Pulse Electronics |
4,849 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.461" W (14.81mm x 11.70mm) | 0.192" (4.88mm) | -40°C ~ 125°C | - | - |
|
H5062FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
268 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
PE-65848FNLTPULSE XFMR 1CS:1CS TX/RX Pulse Electronics |
3,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS Transmitter, 1CS:1CS Receiver | Surface Mount | 0.475" L x 0.566" W (12.07mm x 14.37mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
HX6062FNLTPULSE XFMR 1CT:1CT TX/RX Pulse Electronics |
2,336 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 325µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
H5610NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
246 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.680" L x 0.310" W (17.27mm x 7.87mm) | 0.440" (11.18mm) | 0°C ~ 70°C | - | - |
