Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1284NLPULSE XFMR 155UH Pulse Electronics |
1,154 |
|
Datasheet |
- | Tray | Active | - | 155µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
|
HX6621NLMDL SIN 1GPP 1:1 SMT TY Pulse Electronics |
4,302 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HXU6200NLXFRMR MAGNETIC 1PORT 1GIG MED Pulse Electronics |
2,217 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | - | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
|
H5400NLTXFRMR MODULE QUAD 1G 1:1 BGA SMD Pulse Electronics |
3,511 |
|
Datasheet |
H5400NLT | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.420" (10.67mm) | 0°C ~ 70°C | - | - |
|

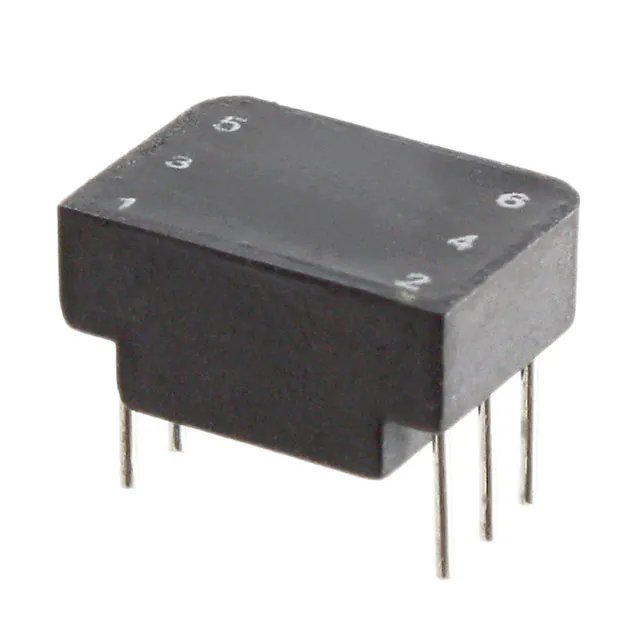

PE-65948NLXFRMR 1CT:1CT FOR ECHELON/NEURON Pulse Electronics |
1,674 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 3.5mH, 6.5mH | - | 1CT:1CT | Through Hole | 0.510" L x 0.360" W (12.95mm x 9.15mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
PAT6625.001NLTXMR, FLYBACK, EP17P, 19-37V INPU Pulse Electronics |
4,415 |
|
- |
* | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - |
|
23Z467SMPULSE XFMR 1CT:2CT TX 1CT:1CT RX Pulse Electronics |
2,357 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 140µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
H6600NLTTRANSFORMER MODULE 10GBASE-T Pulse Electronics |
4,542 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.680" L x 0.310" W (17.27mm x 7.87mm) | 0.440" (11.18mm) | 0°C ~ 70°C | - | - |
|
H2009FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,749 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.518" L x 0.703" W (13.16mm x 17.86mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
|
H5009FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,840 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.538" L x 0.726" W (13.67mm x 18.44mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
