Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EB2065PSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,096 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

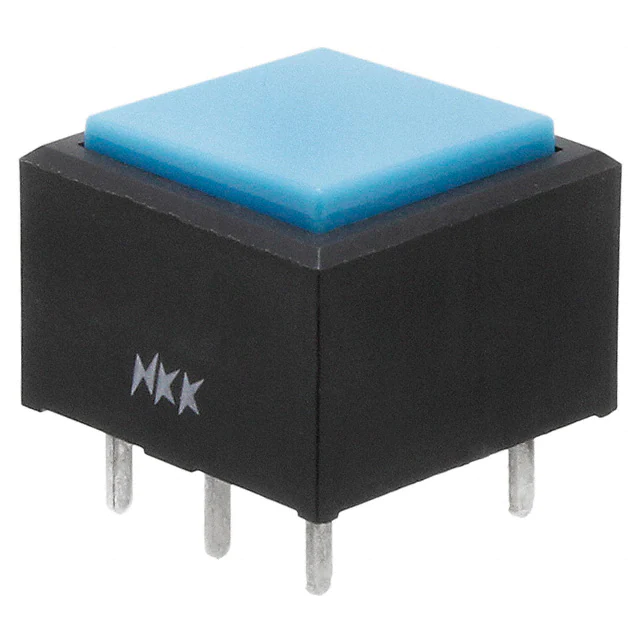

UB26SKW03N-GSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
3,284 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|

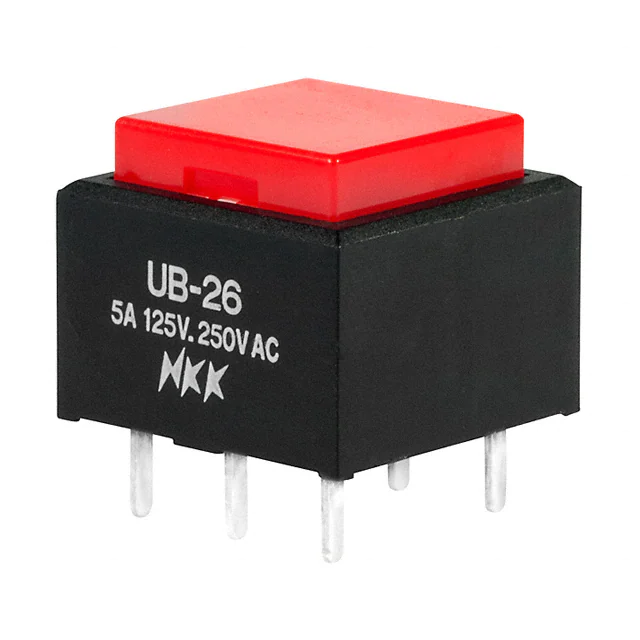

UB26SKW03N-CSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,709 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|
EB2065SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,933 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

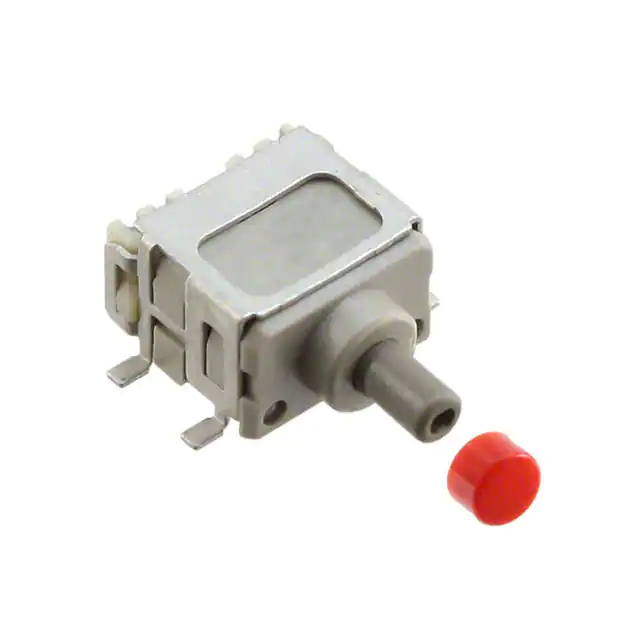

G3B15AH-XCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,174 |
|
Datasheet |
G3B | Tray | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
UB15NKW01N-ASWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,813 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
|
UB16SKW03N-CSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,003 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
|
UB16SKW03N-FSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,457 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
|
UB215SKW03N-4JBSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,273 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
UB215SKW03N-4JFSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,928 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
