Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB25KKG015F-JBSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
4,259 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Sealed - Fully, Stackable | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
UB215SKW035D-1JBSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,854 |
|
Datasheet |
UB2 | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
LB25SKW01SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,544 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|

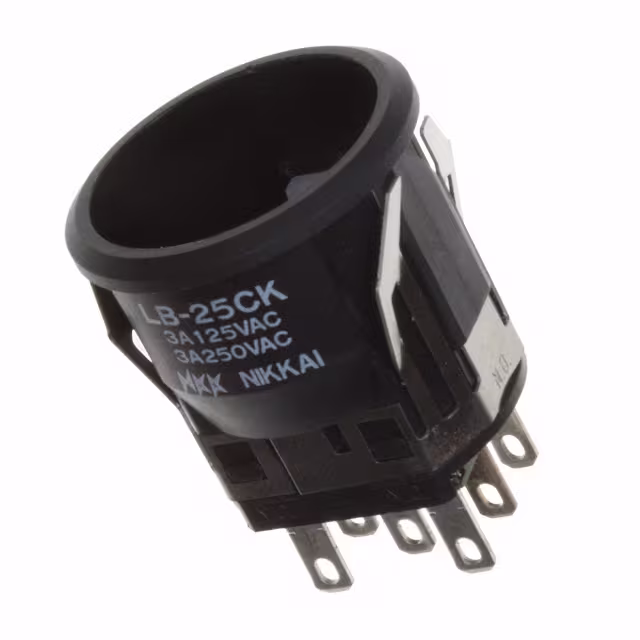

LB25CKW01SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,870 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
MBN25SB1W01LARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
4,428 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
UB26NKW015CSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
3,685 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Stainless Steel | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
UB216SKW035FSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,538 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
UB26RKG035DSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
1,239 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
UB215SKG035C-1JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,704 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | RTV Adhesive Sealant on Terminals | - | -25°C ~ 50°C |
|

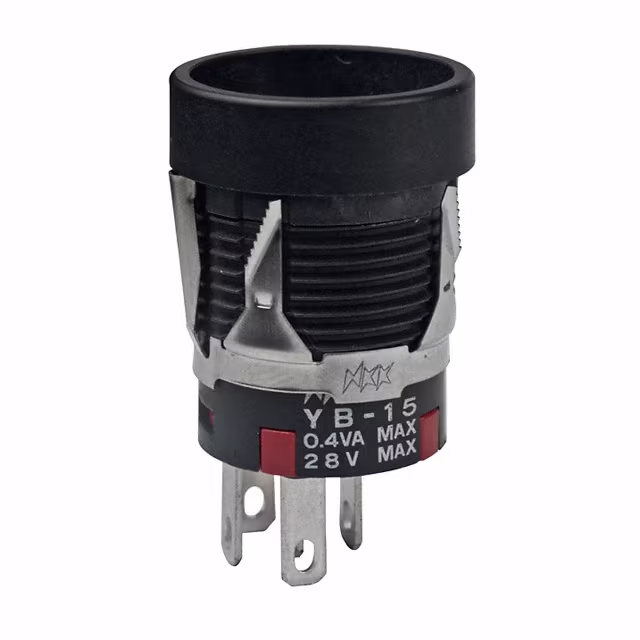

YB15MKG01SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,726 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
