Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8125SD9A2BESWITCH PUSH SPDT 0.4VA 20V C&K |
3,990 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
8125SDAV2BESWITCH PUSH SPDT 0.4VA 20V C&K |
2,922 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
8168SHCBE2SWITCH PUSH SPDT 0.4VA 20V C&K |
2,435 |
|
Datasheet |
8060 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
E112SD1AGESWITCH PUSHBUTTON SPDT 4A 125V C&K |
2,838 |
|
Datasheet |
E010 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
8168S1H9ZQE1Linear IC's C&K |
1,150 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | - | White | - | - | Solder Lug | - | - | - | -30°C ~ 65°C |
|
|
8161SHCQE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
2,073 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

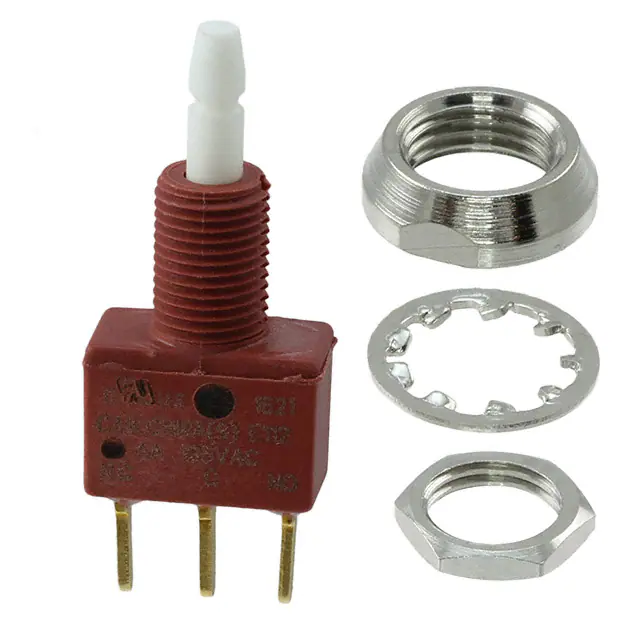

E112MYCGESWITCH PUSHBUTTON SPDT 4A 125V C&K |
2,804 |
|
Datasheet |
E010 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Process Sealed | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
|
8168SHZQE3SWITCH PUSHBUTTON SPDT 6A 120V C&K |
3,991 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
8532T1CQE3Linear IC's C&K |
1,773 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | - | Red | - | - | PC Pin | - | - | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
ELUMOATHQ8C12SWITCH PUSH SPDT 0.25A 50V C&K |
3,893 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Amber/Green | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
