Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8168LHWBE2PUSHBUTTON SWITCHES PUSHBUTTON C&K |
1,145 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | Black | - | - | Wire Wrap | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
TP11SHV3QELinear IC's C&K |
3,030 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | - | - | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
8125MD9ABESWITCH PUSH SPDT 0.4VA 20V C&K |
4,119 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
8168SHCQE3Linear IC's C&K |
1,050 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | - | Red | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
EP12SD1AVPESWITCH PUSH SPDT 0.4VA 20V C&K |
2,009 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
8168J81ZQE92SWITCH PUSHBUTTON SPDT 6A 120V C&K |
1,892 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Gray | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
|
1XNE18 2A EESWITCH PUSHBUTTON C&K |
2,166 |
|
Datasheet |
1X | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
8168SHZBE3Linear IC's C&K |
2,146 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
8531TZGE2SWITCH PUSH SPST-NO 1A 120V C&K |
3,231 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|

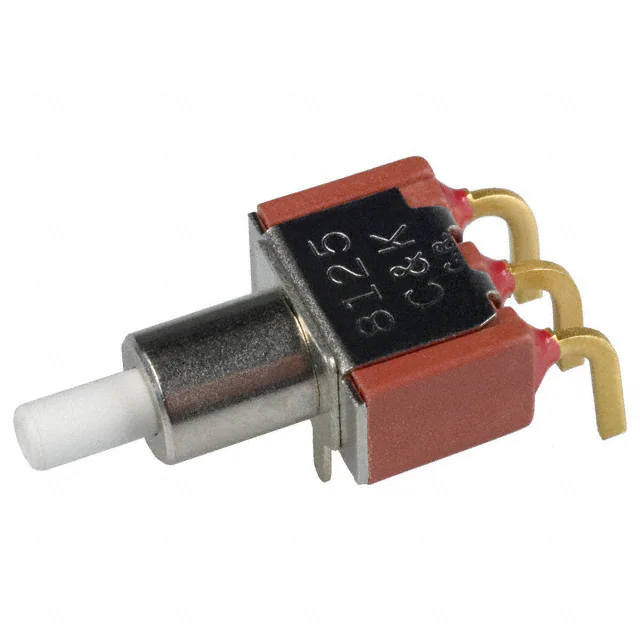

8125SD8ABESWITCH PUSH SPDT 0.4VA 20V C&K |
4,716 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
