Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8168SHV6BE2SWITCH PUSH SPDT 0.4VA 20V C&K |
3,594 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
8532MCBE3SWITCH PUSH SPST-NO 0.4VA 20V C&K |
3,904 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
8534MZQE2SWITCH PUSH SPST-NC 1A 120V C&K |
4,826 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
8125SD9V6BESWITCH PUSH SPDT 0.4VA 20V C&K |
2,104 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
8168S1H9AV2BE2SWITCH PUSH SPDT 0.4VA 20V C&K |
4,230 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|

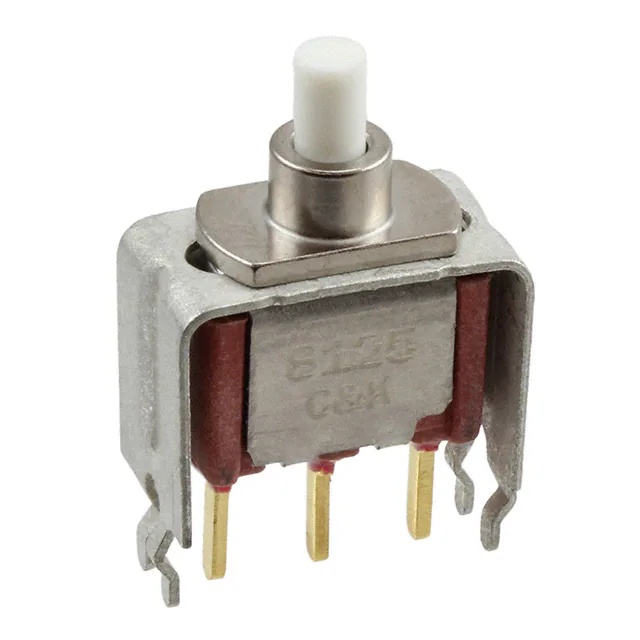

8125SD3V31BESWITCH PUSH SPDT 0.4VA 20V C&K |
4,461 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
E225SD3CBESWITCH PUSH DPDT 0.4VA 20V C&K |
4,425 |
|
Datasheet |
E020 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
ELUMEESAQ3C22SWITCH PUSH SPDT 0.25A 50V C&K |
1,682 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Red | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
E112LYZBELinear IC's C&K |
1,320 |
|
Datasheet |
E010 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
|
8161SHCQE5SWITCH PUSHBUTTON SPDT 6A 120V C&K |
4,741 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Yellow | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
