Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8121J83ZGE12SWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,822 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button, Flush | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
E125SD1V6BESWITCH PUSH SPDT 0.4VA 20V C&K |
4,098 |
|
Datasheet |
E020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
E125SD3V3BESWITCH PUSH SPDT 0.4VA 20V C&K |
2,175 |
|
Datasheet |
E020 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
TP21SHCQESWITCH PUSH DPST-NO 1A 120V C&K |
1,006 |
|
Datasheet |
TP | Tray | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
ELUMOATHQ1C12SWITCH PUSH SPDT 0.25A 50V C&K |
2,151 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, White | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
SF6UEESWITCH PUSHBUTTON C&K |
1,235 |
|
- |
F | Bulk | Obsolete | Through Hole, Right Angle | Standard | 6PDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
8161SHAV2QE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
2,726 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
8168SHV3QE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
4,923 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
8551J82ZQE22SWITCH PUSH SPST-NO 3A 120V C&K |
3,437 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|

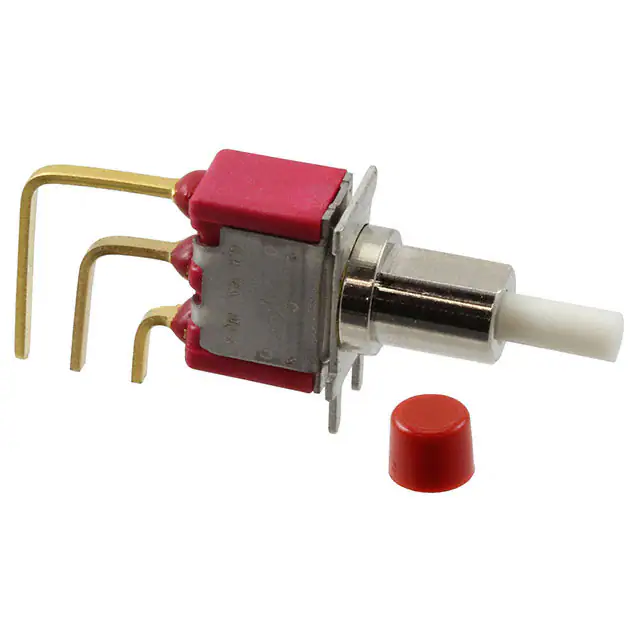

8168S1H9AV2BE3SWITCH PUSH SPDT 0.4VA 20V C&K |
1,640 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
