Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8161S1HAV2BE1Linear IC's C&K |
2,217 |
|
Datasheet |
8060 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | White | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
8168L1H9ABE3SWITCH PUSH SPDT 0.4VA 20V C&K |
1,990 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
8533MZGE2SWITCH PUSH SPST-NC 1A 120V C&K |
3,428 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
8161SH9CQE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
2,167 |
|
Datasheet |
8060 | Tray | Active | Through Hole | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|

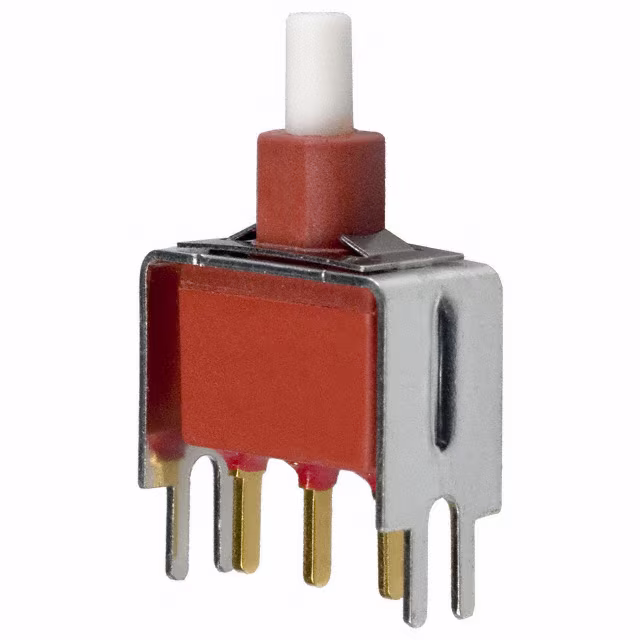

E112SD1V3BESWITCH PUSH SPDT 0.4VA 20V C&K |
3,126 |
|
Datasheet |
E010 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
ELUMOATHQ1C22SWITCH PUSH SPDT 0.25A 50V C&K |
2,123 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, White | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
|
8534J81ZQE12PUSHBUTTON SWITCHES PUSHBUTTON C&K |
1,006 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | - | White | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
|
8168S2HABE2SWITCH PUSH SPDT 0.4VA 20V C&K |
1,721 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
8552J81ZQE22SWITCH PUSH SPST-NO 3A 120V C&K |
4,108 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
TP11J81ZGE22SWITCH PUSH SPST-NO 1A 120V C&K |
1,686 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Sealed | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
