Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELUMEETHQ3C22Linear IC's C&K |
3,137 |
|
Datasheet |
ELUM™ | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | - | Black | LED, Red | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|

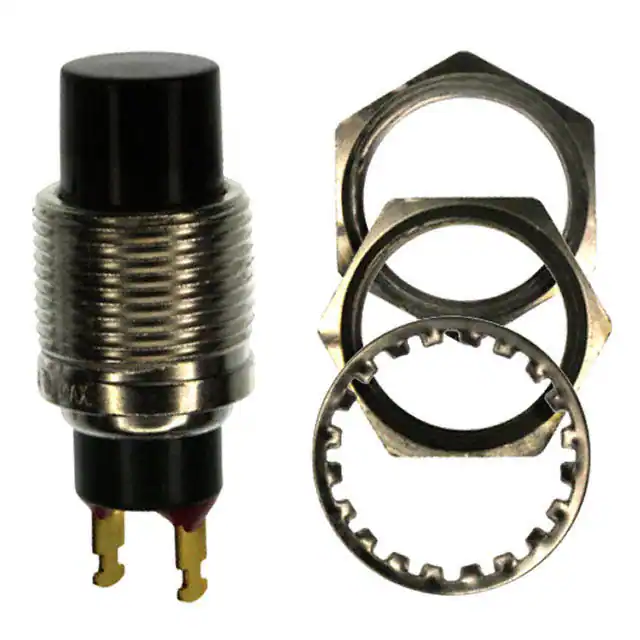

8532TZBE2SWITCH PUSH SPST-NO 0.4VA 20V C&K |
1,437 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
|
8121SD9ZGELinear IC's C&K |
2,884 |
|
Datasheet |
8020 | Bulk | Active | - | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | Solder Lug | - | - | - | -30°C ~ 75°C |
|
|
8125J80CBE3Linear IC's C&K |
3,312 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | - | Red | - | - | PC Pin | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|

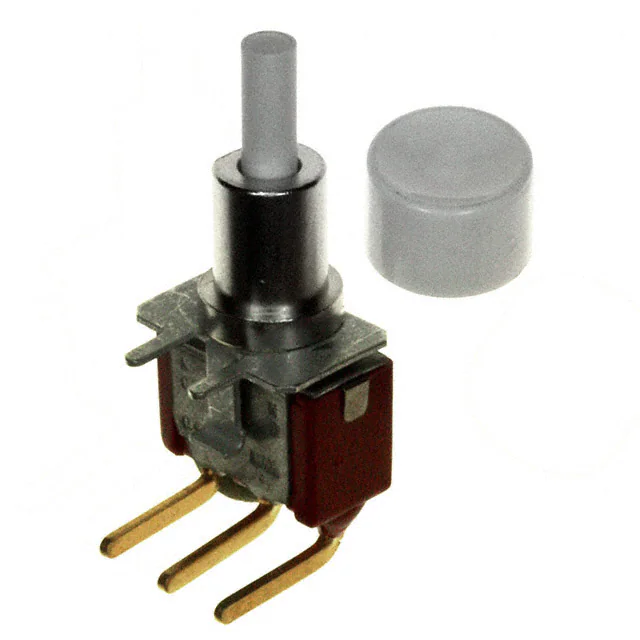

8168S1H9ABE1SWITCH PUSH SPDT 0.4VA 20V C&K |
2,854 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|

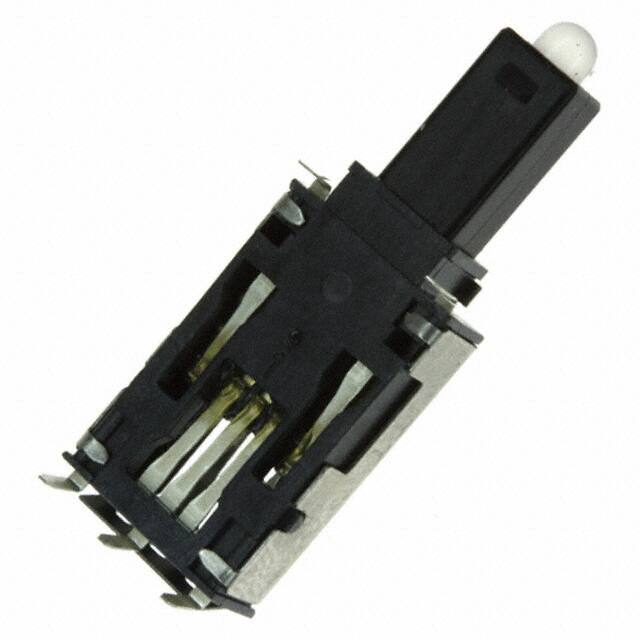

ELUMEETHQ8C22SWITCH PUSH SPDT 0.25A 50V C&K |
3,336 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Amber/Green | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
E121SD1AV3RESWITCH PUSHBUTTON SPDT C&K |
3,654 |
|
Datasheet |
E020 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 75°C |
|
|
8161SH9ABE3Linear IC's C&K |
2,015 |
|
Datasheet |
8020 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | Red | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|

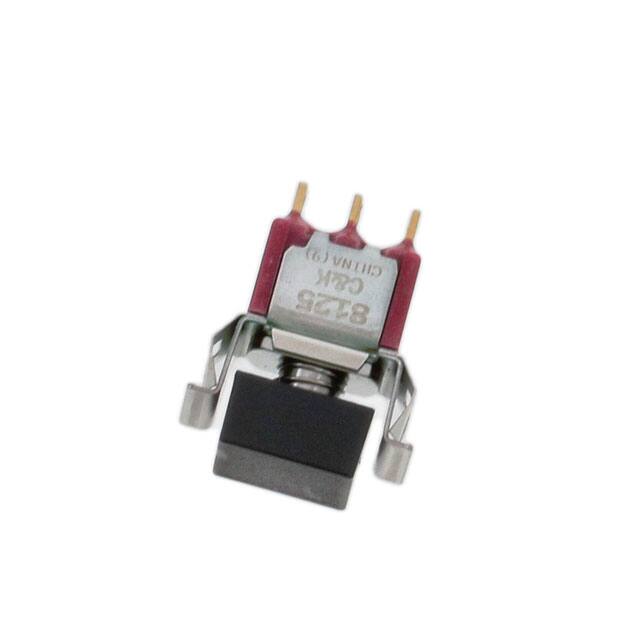

8125J80ZBE2PB SWITCH SPDT ON-MOM 0.4VA SNAP C&K |
4,026 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
|
1XNE18 2U EESWITCH PUSHBUTTON C&K |
3,269 |
|
Datasheet |
1X | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
