Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP11SHCGESWITCH PUSH SPST-NO 1A 120V C&K |
3,863 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
8121J82ZGE22SWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,836 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
8161LH9V4QE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
4,287 |
|
Datasheet |
8060 | Tray | Active | Through Hole | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
8168SHV3BE2SWITCH PB SPDT MOM W/CAP TH C&K |
4,058 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8168SH9V6BE2SWITCH PUSH SPDT 0.4VA 20V C&K |
3,992 |
|
Datasheet |
8060 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
ELUMEETHQ1C22SWITCH PUSH SPDT 0.25A 50V C&K |
2,787 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, White | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
8125J83ZBE32SWITCH PUSH SPDT 0.4VA 20V C&K |
4,958 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button, Flush | No Marking | Red | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
|
8125J83ZBE33SWITCH PUSH SPDT 0.4VA 20V C&K |
3,428 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button, Flush | No Marking | Red | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|

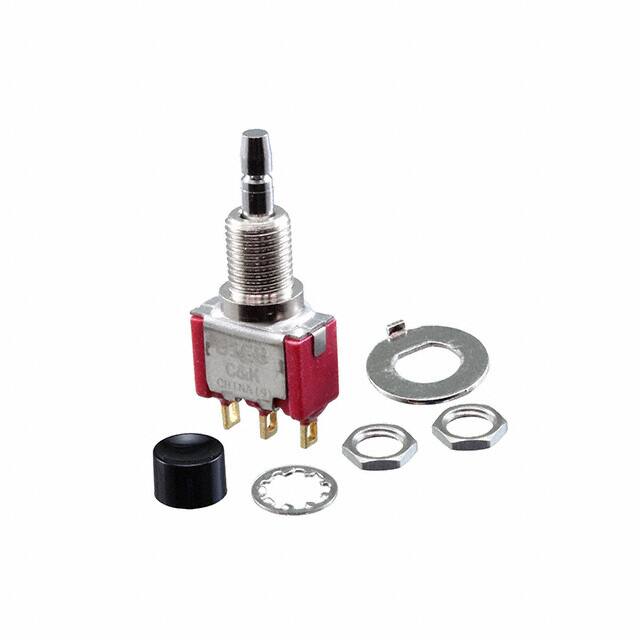

8168LHZGE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
3,056 |
|
Datasheet |
8060 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
8161SH9V6BE2Linear IC's C&K |
2,477 |
|
Datasheet |
8020 | Bulk | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
