Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8121SYCGEPUSHBUTTON SWITCHES PUSHBUTTON C&K |
3,886 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 75°C |
|

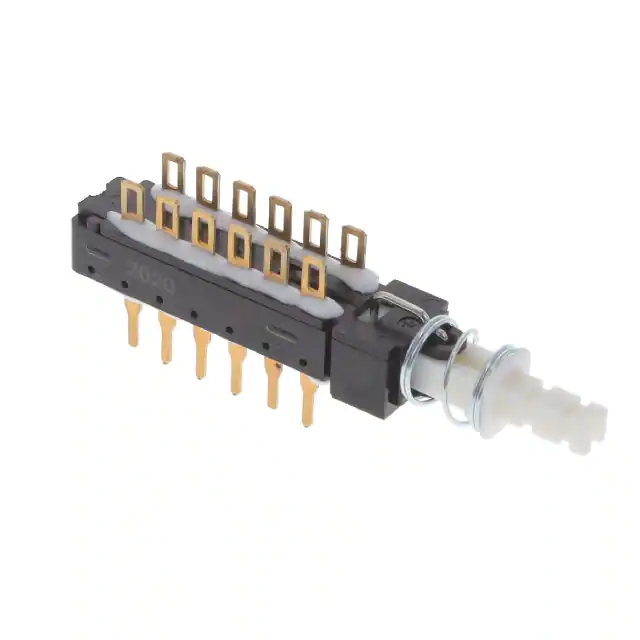

F4UEETBAUSWITCH PUSH 4PDT 0.04A 50V C&K |
3,658 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-On | 40mA (AC), 10mA (DC) | 50 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|
TP11LT9CBESWITCH PUSH SPST-NO 0.4VA 20V C&K |
2,732 |
|
Datasheet |
TP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
8121SY9ARESWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,762 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
ELUMOASAQ8C22SWITCH PUSH SPDT 0.25A 50V C&K |
2,037 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Amber/Green | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
8125SDABESWITCH PUSH SPDT 0.4VA 20V C&K |
4,234 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|

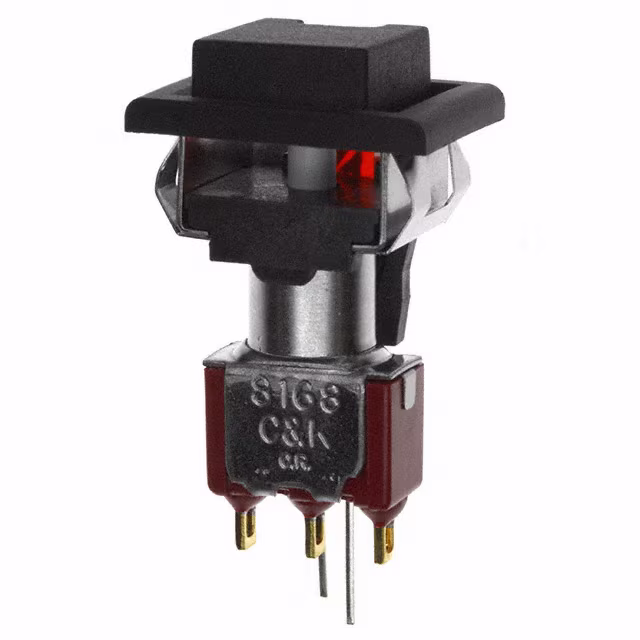

8168J86ZGE223SWITCH PUSHBUTTON SPDT 6A 120V C&K |
1,692 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
|
TP12J81CBE22SWITCH PUSH SPDT 0.4VA 20V C&K |
2,979 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Sealed | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|
AP4N000TZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
2,043 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
8631CQD3SWITCH PUSH SPST-NO 0.5A 120V C&K |
3,207 |
|
Datasheet |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | Red | - | - | PC Pin | - | - | Circular - 4.37mm Dia | -30°C ~ 65°C |
