Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1XSF 2U EESWITCH PUSHBUTTON C&K |
3,250 |
|
- |
1X | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
U811SDV6GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,322 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
ELUMEESAQ3C12SWITCH PUSH SPDT 0.25A 50V C&K |
3,329 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Red | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
|
8125J85WBE223PUSHBUTTON SWITCHES PUSHBUTTON C&K |
1,032 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | - | Black | LED, Red | 2.1 VDC | Wire Wrap | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|

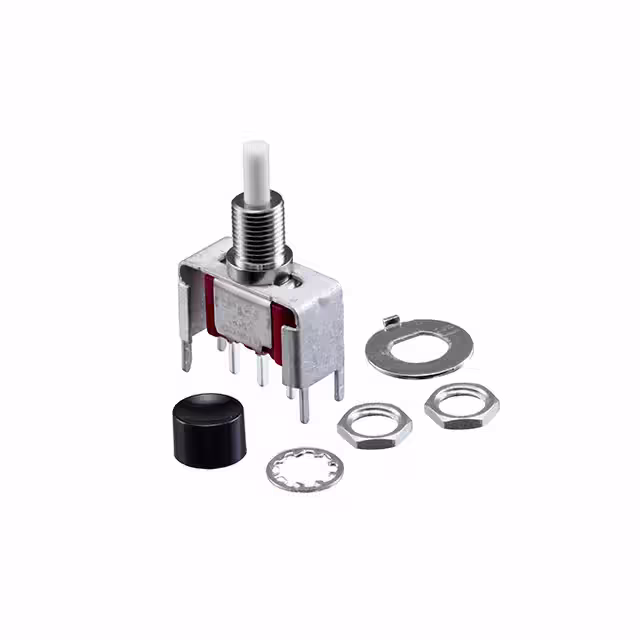

8168SHV6QE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
4,620 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
8633ZBE2SWITCH PUSH SPST-NC 0.4VA 20V C&K |
1,201 |
|
Datasheet |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 4.37mm Dia | -30°C ~ 65°C |
|
|
8225LY4ZBELinear IC's C&K |
1,038 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 75°C |
|

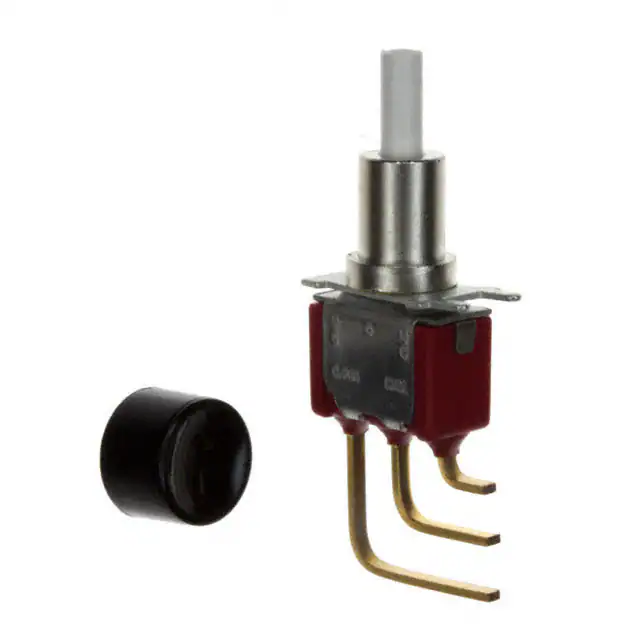

8168LH9AV2BE2SWITCH PUSH SPDT 0.4VA 20V C&K |
4,217 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
|
8168S1HAV2BE3Linear IC's C&K |
3,485 |
|
Datasheet |
8060 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | Red | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
8168S1HAV2BE2Linear IC's C&K |
3,778 |
|
Datasheet |
8060 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
