Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8121MDZGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,848 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
AP2N002SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
1,139 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
REL BAR F5X12.5 NICKEL PLTDSWITCH PUSHBUTTON C&K |
1,245 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TP12LTCBESWITCH PUSH SPDT 0.4VA 20V C&K |
1,854 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
8225SYZBELinear IC's C&K |
1,136 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
8261LHCQE2SWITCH PUSHBUTTON DPDT 6A 120V C&K |
4,481 |
|
Datasheet |
8060 | Tray | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
8121J82W4GE22SWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,997 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Wire Wrap | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
|
8121SD9W3GELinear IC's C&K |
2,728 |
|
Datasheet |
8020 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | Wire Wrap | - | - | - | -30°C ~ 75°C |
|

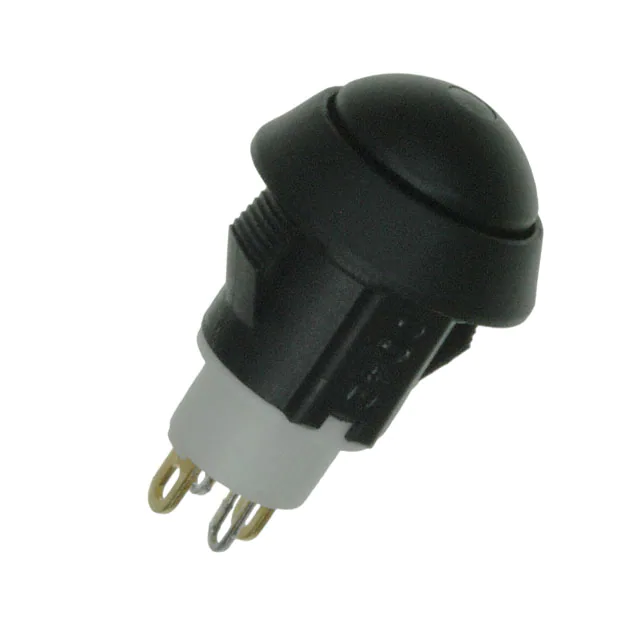

AP2D203SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
2,710 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
SET2LBKRDGNAUEESWITCH PUSH SPDT 0.01A 24V C&K |
2,963 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green/Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
