Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP21SD1CPESWITCH PUSH DPST-NO 0.4VA 20V C&K |
1,550 |
|
Datasheet |
EP | Bag | Active | Through Hole | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
8532T1CQE2SWITCH PUSH SPST-NO 1A 120V C&K |
2,129 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|

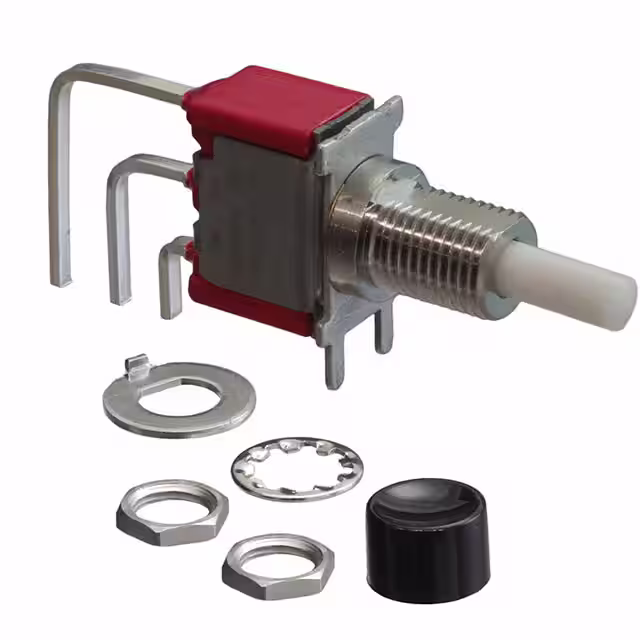

8168SHAV2QE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
4,613 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
8161SH9AV2GE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
1,032 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
8168SH9V3GE2Linear IC's C&K |
2,321 |
|
Datasheet |
8020 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
8161S1HAV2BE5Linear IC's C&K |
3,246 |
|
Datasheet |
8060 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | - | Yellow | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
8125J84Z3BE22SWITCH PUSH SPDT 0.4VA 20V C&K |
3,165 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button, Flush | No Marking | Black | - | - | Quick Connect - 0.062" (1.5mm) | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
|
8121SD9V31GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,585 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
8121MDAGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,393 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
|
8125J81ZBE62SWITCH PUSH SPDT 0.4VA 20V C&K |
2,077 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
