Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP2N003TWBELinear IC's C&K |
1,615 |
|
Datasheet |
AP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Plunger for Cap | - | - | LED, Red | 2 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
|
PNP3S2D2Y03QELinear IC's C&K |
2,798 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | - | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
TP21SHCBESWITCH PUSH DPST-NO 0.4VA 20V C&K |
1,194 |
|
Datasheet |
TP | Tray | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
8168SY3ZQE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
3,495 |
|
Datasheet |
8060 | Tray | Last Time Buy | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
8121MY3ZGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
2,333 |
|
Datasheet |
8020 | Tray | Last Time Buy | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.50mm Dia | -30°C ~ 75°C |
|

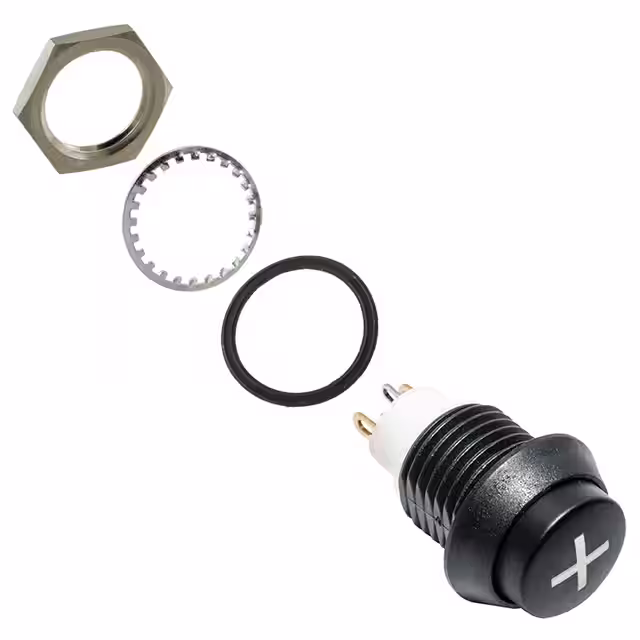

APB4E01TZBE001SWITCH PUSH SPST-NO 0.2A 24V C&K |
3,275 |
|
Datasheet |
APB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | + | Black | LED, White | 3.5 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
|
8261LH9AQE2SWITCH PUSHBUTTON DPDT 6A 120V C&K |
3,247 |
|
Datasheet |
8060 | Tray | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
|
PNP8E2D2Y03GELinear IC's C&K |
1,264 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | - | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
|
AP4E900SWBESWITCH PUSH SPST-NO 0.125A 125V C&K |
2,374 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PNP8S2T2C03QESWITCH PUSHBUTTON SPDT 5A 32V C&K |
1,273 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
