Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NE18 2A 2U EE L 6AMPSWITCH PUSHBUTTON DPDT 6A 250V C&K |
2,395 |
|
Datasheet |
NE18 | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 6A (AC/DC) | 250 V | 100 V | Plunger for Cap | No Marking | - | - | - | PC Pin | Dust Proof | - | - | - |
|
|
ZFAFA200BKGN4UEESWITCH PUSH 4PDT 0.5A 125V C&K |
4,880 |
|
Datasheet |
F | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | 4PDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | PC Pin, Solder Lug | - | - | Circular - 14.00mm Dia | -40°C ~ 70°C |
|
|
8221SD9AV2GELinear IC's C&K |
1,580 |
|
Datasheet |
8020 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | PC Pin | - | - | - | -30°C ~ 75°C |
|
E221SD1AV2GESWITCH PUSHBUTTON DPDT 1A 120V C&K |
1,395 |
|
Datasheet |
E020 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
8221SDAGESWITCH PUSHBUTTON DPDT 1A 120V C&K |
3,465 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
|
U821SD9V3GESWITCH PUSHBUTTON DPDT 1A 120V C&K |
2,858 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
|
ZFA FA200 BK WH 2U EESWITCH PUSHBUTTON C&K |
3,088 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

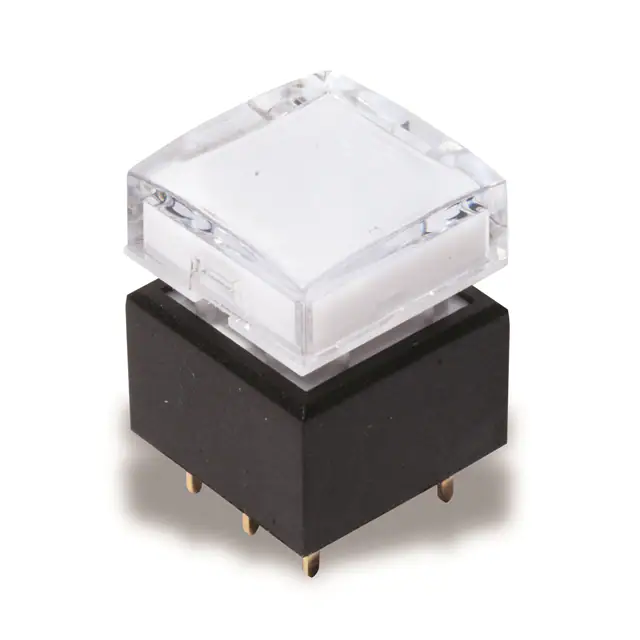

KLS12F036EGFLAT, SPDT, PCB, LOCK, RED / GRE C&K |
2,411 |
|
Datasheet |
KLS | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 100mA (DC) | - | 28 V | Square, Button | No Marking | Clear | LED, Green/Red | 2 VDC | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
PNP8S3D2WW2GELinear IC's C&K |
1,590 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Round, Button, Domed | - | Red | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
|
8221J81ZGE12SWITCH PUSHBUTTON DPDT 1A 120V C&K |
4,811 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
