Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8261SH9A3BE2SWITCH PUSH DPDT 0.4VA 20V C&K |
1,132 |
|
Datasheet |
8060 | Tray | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
AP4C500TWBELinear IC's C&K |
1,775 |
|
Datasheet |
AP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | - | Yellow | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
8121SY3CGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,044 |
|
Datasheet |
8020 | Tray | Last Time Buy | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.50mm Dia | -30°C ~ 75°C |
|
|
8221SD3V3GESWITCH PUSHBUTTON DPDT 1A 120V C&K |
2,969 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|

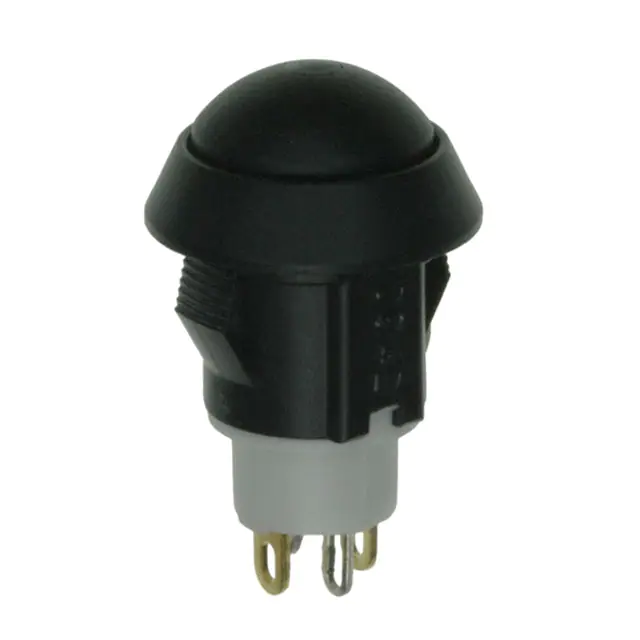

AP2D206SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
3,772 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
|
U821SD3V4GESWITCH PUSHBUTTON DPDT 1A 120V C&K |
1,096 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|

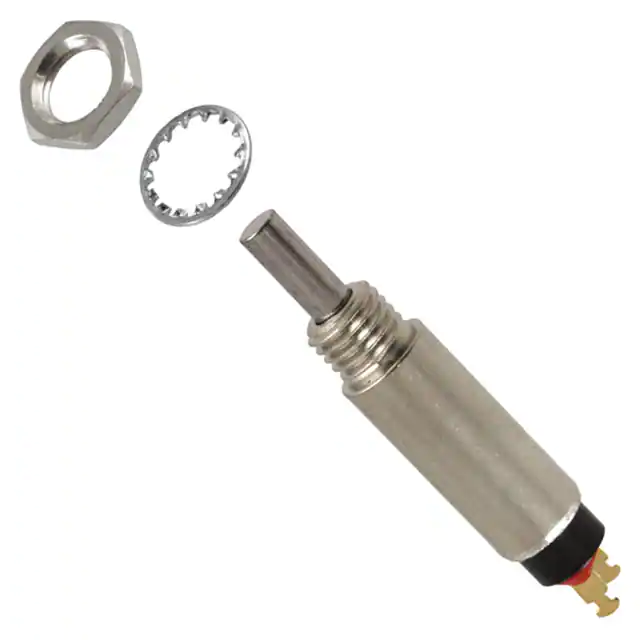

8731SHZBESWITCH PUSH SPST-NO 0.4VA 20V C&K |
2,772 |
|
Datasheet |
8700 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Silver | - | - | Solder Lug | - | Overtravel | Circular - 8.08mm Dia | -30°C ~ 65°C |
|
8533TZBE3SWITCH PUSH SPST-NC 0.4VA 20V C&K |
4,734 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
|
8261LHZGE1SWITCH PUSHBUTTON DPDT 6A 120V C&K |
1,388 |
|
Datasheet |
8060 | Tray | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
PNP8S3D2Y02GELinear IC's C&K |
3,893 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 32 V | Round, Button | - | Red | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | Circular - 12.30mm Dia | -40°C ~ 85°C |
