Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
U811J85ZGE223SWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,127 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
PNP3S2T2W03QELinear IC's C&K |
3,879 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | - | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
|
8221SD3V7GELinear IC's C&K |
2,259 |
|
Datasheet |
8020 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | PC Pin | - | - | - | -30°C ~ 75°C |
|

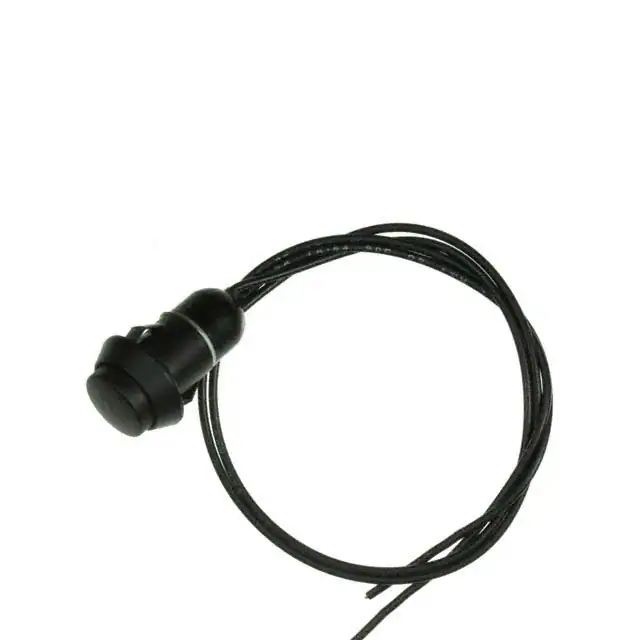

AP2E200SWBESWITCH PUSH SPST-NO 0.125A 125V C&K |
3,622 |
|
Datasheet |
AP | Bag | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
|
AP4C300TWBESWITCH PUSH SPST-NO 0.125A 125V C&K |
1,794 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
U811J81ZGE12SWITCH PUSHBUTTON SPDT 1A 120V C&K |
2,785 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
|
8121SY3ZGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,474 |
|
Datasheet |
8020 | Tray | Last Time Buy | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.50mm Dia | -30°C ~ 75°C |
|

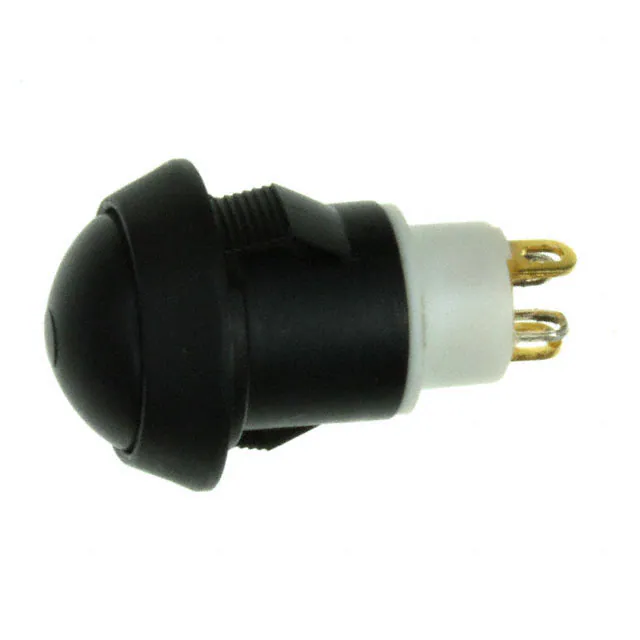

AP4D207SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
1,183 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Blue | 3.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
|
PNP8E2D2Y02GELinear IC's C&K |
1,193 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 32 V | Round, Button | - | Black | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
E221SD1AV3RESWITCH PUSHBUTTON DPDT C&K |
3,856 |
|
Datasheet |
E020 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 75°C |
