Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSM K12G 1.5 3.5N C L130 PO PUSWITCH PUSH DPST-NO 0.1A 30V C&K |
2,592 |
|
Datasheet |
DSM | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button, Dual Rubber Cap | No Marking | Black | - | - | Wire Leads | IP65 - Dust Tight, Water Resistant | - | - | - |
|
|
DSM K12G 1.5 3.5N C L130SWITCH PUSH DPST-NO 0.1A 30V C&K |
3,073 |
|
Datasheet |
DSM | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button, Dual Rubber Cap | No Marking | Black | - | - | Wire Leads | IP65 - Dust Tight, Water Resistant | - | - | - |
|
F4UOA TBSWITCH PUSH 4PDT 0.5A 125V C&K |
4,669 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|

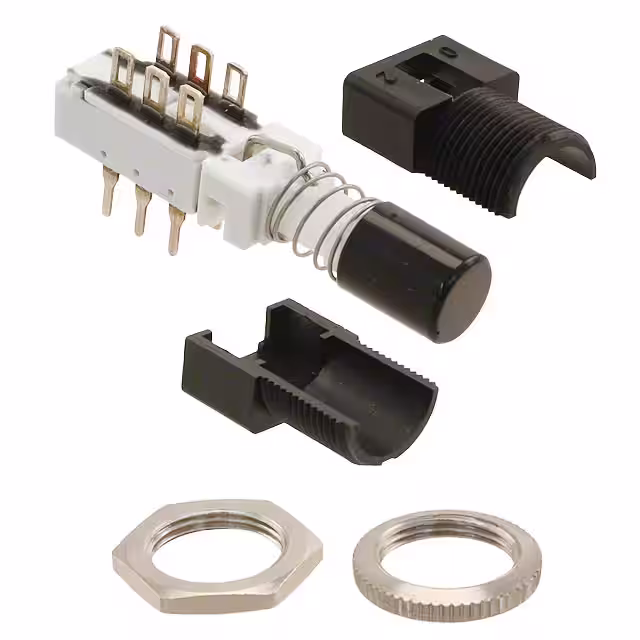

ZF12 FG BK 2U EESWITCH PUSH DPDT 0.5A 125V C&K |
4,837 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin, Solder Lug | - | - | Circular - 12.00mm Dia | -40°C ~ 70°C |
|

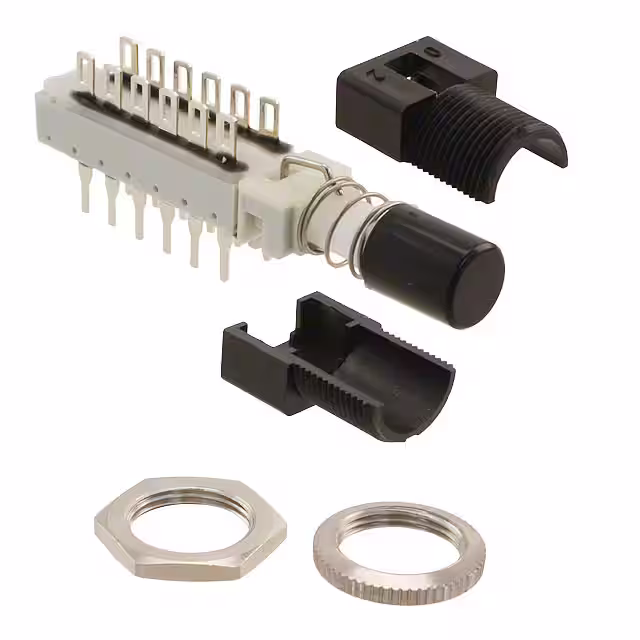

ZF12 FG BK 4U EESWITCH PUSH 4PDT 0.5A 125V C&K |
1,181 |
|
Datasheet |
F | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | 4PDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin, Solder Lug | - | - | Circular - 12.00mm Dia | -40°C ~ 70°C |
|
ZF12 FG BK 4U OASWITCH PUSH 4PDT 0.5A 125V C&K |
2,392 |
|
Datasheet |
F | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | 4PDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin, Solder Lug | - | - | Circular - 12.00mm Dia | -40°C ~ 70°C |
|

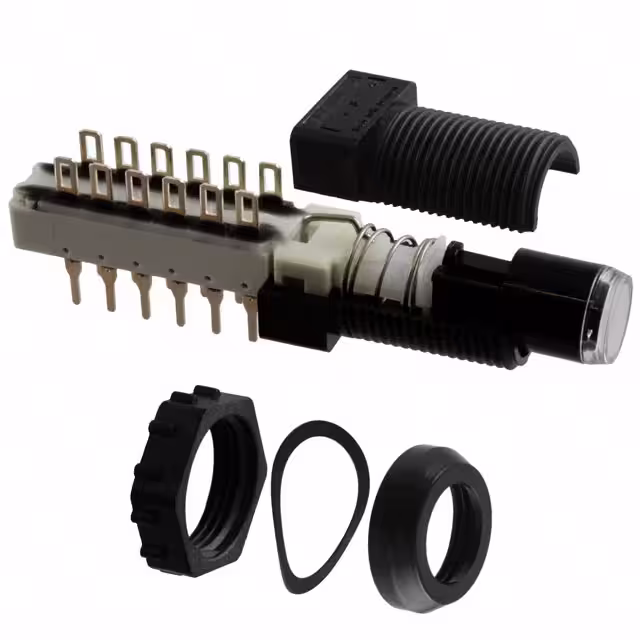

ZFA FA200 BK OG 4U EESWITCH PUSH 4PDT 0.5A 125V C&K |
3,417 |
|
Datasheet |
F | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | 4PDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Orange | - | - | PC Pin, Solder Lug | - | - | Circular - 14.00mm Dia | -40°C ~ 70°C |
|
ZNE18 FA200 BK OG 2U EESWITCH PUSHBUTTON DPDT 6A 250V C&K |
4,910 |
|
Datasheet |
ZNE18 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 6A (AC/DC) | 250 V | 100 V | Round, Button | No Marking | Orange | - | - | PC Pin | Dust Proof | - | Circular - 14.00mm Dia | - |
|
NE18 2U OA 6AMPSWITCH PUSHBUTTON DPDT 6A 250V C&K |
1,299 |
|
Datasheet |
NE18 | Tray | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-Mom | 6A (AC/DC) | 250 V | 100 V | Plunger for Cap | No Marking | - | - | - | PC Pin | Dust Proof | - | - | - |
|
|
NE18 2U OA P 6AMPSWITCH PUSHBUTTON DPDT 6A 250V C&K |
2,766 |
|
Datasheet |
NE18 | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 6A (AC/DC) | 250 V | 100 V | Plunger for Cap | No Marking | - | - | - | PC Pin | Dust Proof | - | - | - |
