Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

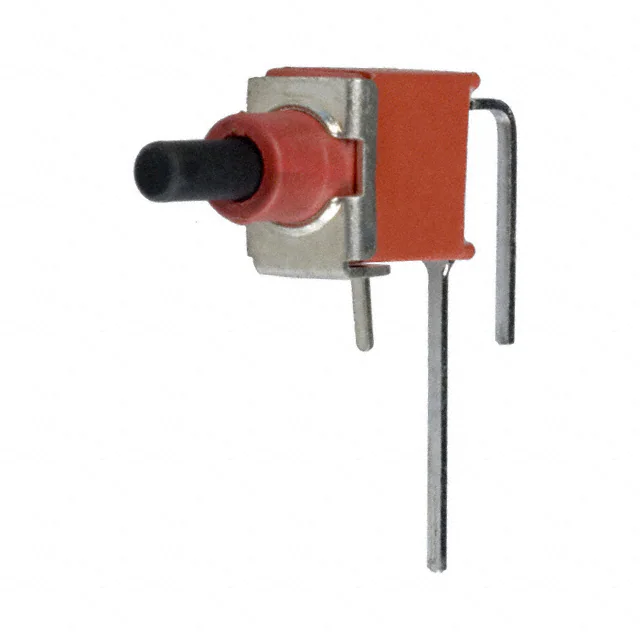

EP11SD1AVKESWITCH PUSH SPST-NO 0.4VA 20V C&K |
1,792 |
|
Datasheet |
EP | Tray | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

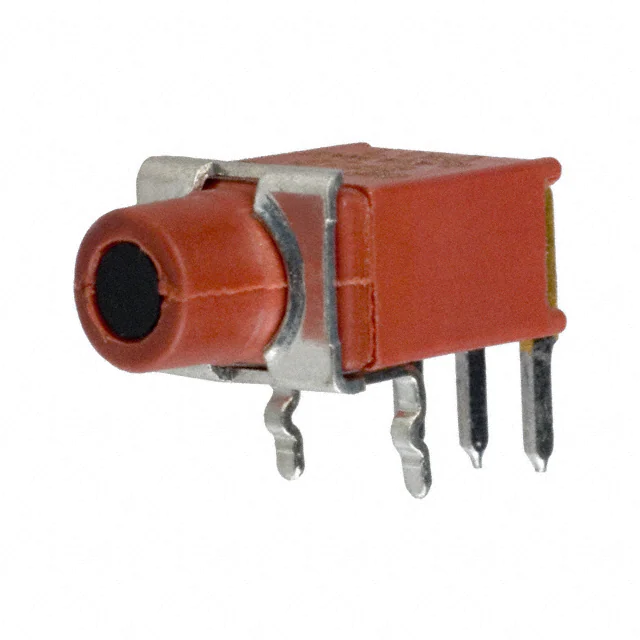

EP12FPD1AKESWITCH PUSH SPDT 0.4VA 20V C&K |
2,143 |
|
Datasheet |
EP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

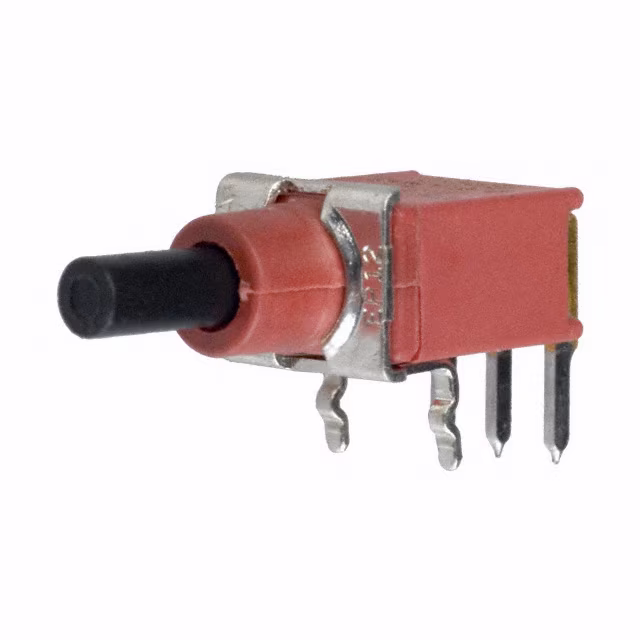

EP12SD1AKESWITCH PUSH SPDT 0.4VA 20V C&K |
4,339 |
|
Datasheet |
EP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
KA11R1CBE2SWITCH PUSH SPST-NO 0.4VA 20V C&K |
2,268 |
|
Datasheet |
KA | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -40°C ~ 90°C |
|
TP11SH9AKESWITCH PUSH SPST-NO 0.4VA 20V C&K |
1,325 |
|
Datasheet |
TP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
D6L90SWITCH PUSH SPST-NO 0.1A 32V C&K |
2,818 |
|
Datasheet |
D6 | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
K12PL RD 1.5 2.5NSWITCH PUSH SPST-NO 0.1A 30V C&K |
1,117 |
|
Datasheet |
K12 | Bulk | Obsolete | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | LED, Red | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|

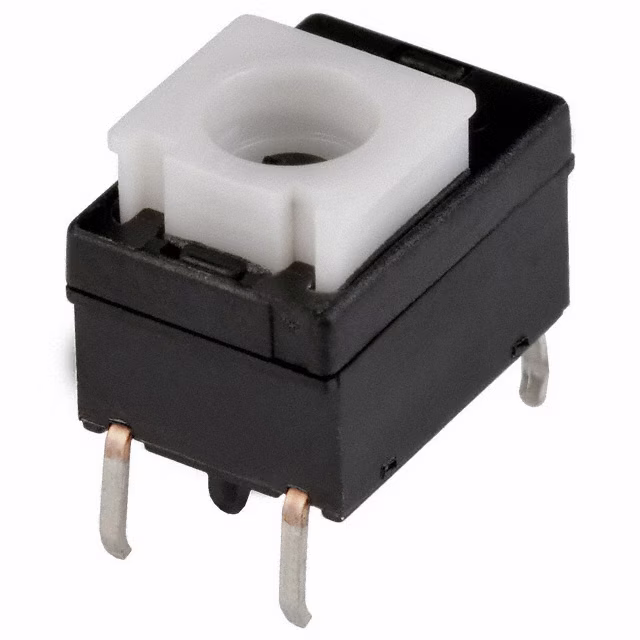

K6B 1.5 5NSWITCH PUSH SPST-NO 0.1A 30V C&K |
4,132 |
|
- |
K6 | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Tactile Feedback | - | -40°C ~ 85°C |
|

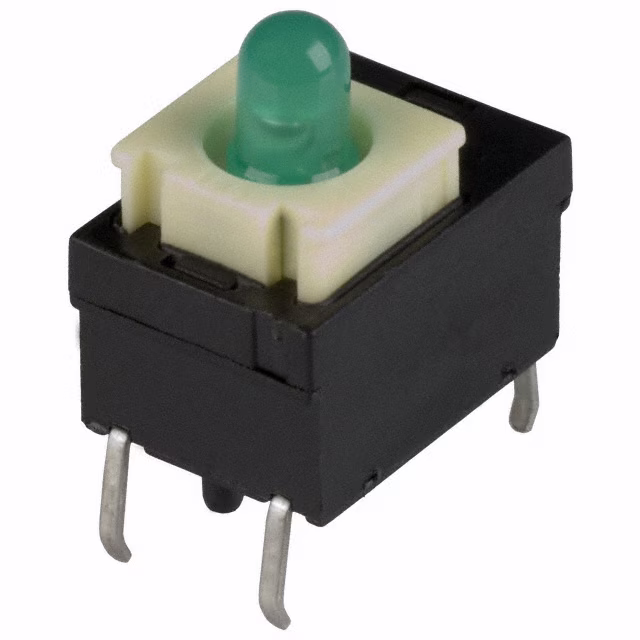

K6BL GN 1.5 3N L306SWITCH PUSH SPST-NO 0.1A 30V C&K |
4,731 |
|
Datasheet |
K6 | Bulk | Obsolete | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | LED, Green | - | PC Pin | - | Tactile Feedback | - | -40°C ~ 85°C |
|

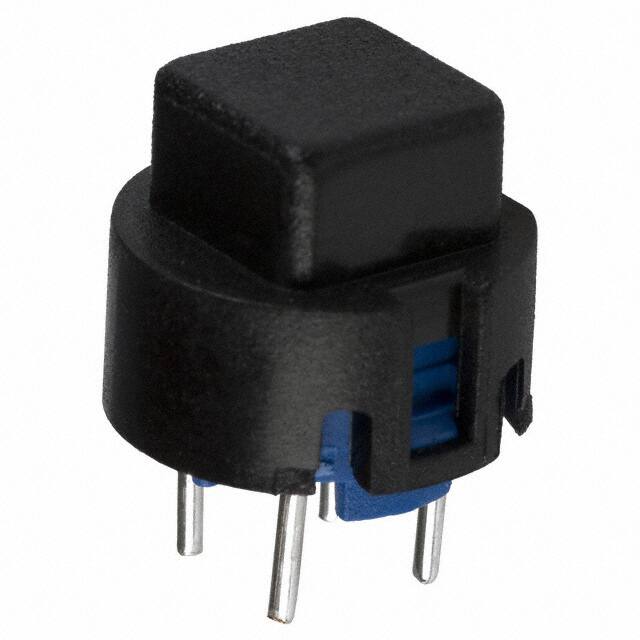

D6C90 HTLFGSWITCH PUSH SPST-NO 0.1A 32V C&K |
4,901 |
|
Datasheet |
D6 | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
