Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E112MD1A3KESWITCH PUSH SPDT 0.4VA 20V C&K |
2,985 |
|
Datasheet |
E010 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
E112SD1AKESWITCH PUSH SPDT 0.4VA 20V C&K |
3,628 |
|
Datasheet |
E010 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|

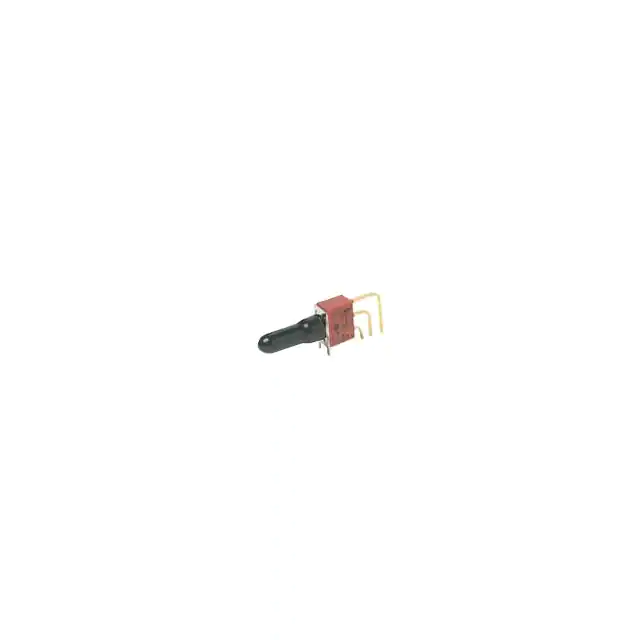

E121SD1A3LESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,186 |
|
Datasheet |
E020 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
|
E121SD1AV3LESWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,045 |
|
Datasheet |
E020 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
|
E121SD1V3LESWITCH PUSHBUTTON SPDT 1A 120V C&K |
3,668 |
|
Datasheet |
E020 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|

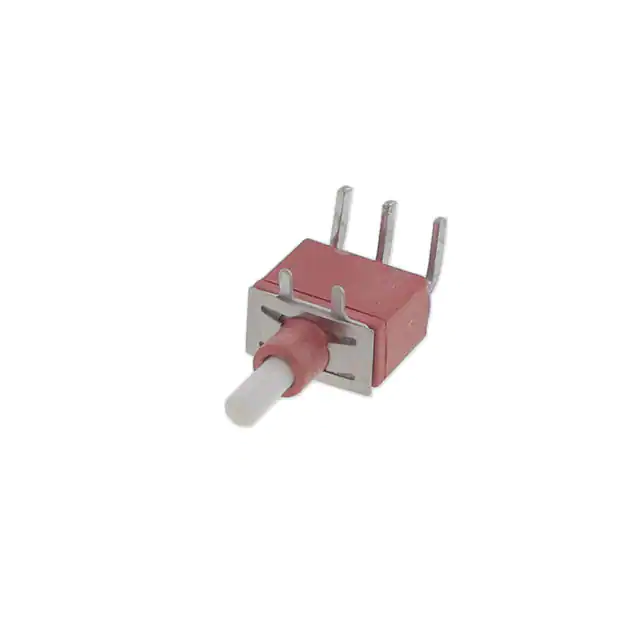

E125SD1AKESWITCH PUSH SPDT 0.4VA 20V C&K |
2,207 |
|
Datasheet |
E020 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
|
E125SD1V8KESWITCH PUSH SPDT 0.4VA 20V C&K |
3,032 |
|
Datasheet |
E020 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
|
E125SD3V3KESWITCH PUSH SPDT 0.4VA 20V C&K |
3,539 |
|
Datasheet |
E020 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
|
E221SD1AV3LESWITCH PUSHBUTTON DPDT 1A 120V C&K |
3,601 |
|
Datasheet |
E020 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
|
E221SD1CLESWITCH PUSHBUTTON DPDT 1A 120V C&K |
2,386 |
|
Datasheet |
E020 | Bulk | Obsolete | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
