Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

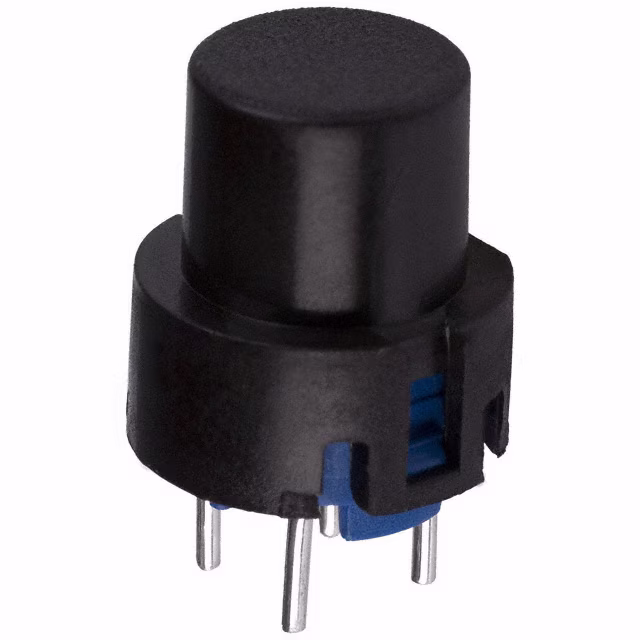

D6R90HTLFGSWITCH PUSH SPST-NO 0.1A 32V C&K |
4,820 |
|
Datasheet |
D6 | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
F6UEETBSWITCH PUSH 6PDT 0.5A 125V C&K |
4,265 |
|
Datasheet |
F | Bulk | Obsolete | Through Hole, Right Angle | Standard | 6PDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|
PN42LESA02QESWITCH PUSH 4PDT 0.2A 30V C&K |
1,308 |
|
Datasheet |
PN | Bulk | Obsolete | Through Hole, Right Angle | Standard | 4PDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
SERL BK GN 7.62 AU EESWITCH PUSH SPDT 0.01A 24V C&K |
4,743 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
ELUMEETHQ5C12SWITCH PUSH SPDT 0.25A 50V C&K |
1,032 |
|
Datasheet |
ELUM™ | Tray | Obsolete | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Amber | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
D6C00 LFSSWITCH PUSH SPST-NO 0.1A 32V C&K |
4,970 |
|
Datasheet |
D6 | Tube | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
D6C10 LFSSWITCH PUSH SPST-NO 0.1A 32V C&K |
3,964 |
|
Datasheet |
D6 | Tube | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Gray | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
|
D6C30 LFSSWITCH PUSH SPST-NO 0.1A 32V C&K |
3,911 |
|
Datasheet |
D6 | Tube | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Yellow | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
D6C40 LFSSWITCH PUSH SPST-NO 0.1A 32V C&K |
2,666 |
|
Datasheet |
D6 | Tube | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
D6C50 LFSSWITCH PUSH SPST-NO 0.1A 32V C&K |
4,594 |
|
Datasheet |
D6 | Tube | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
