Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP12RD1CBESWITCH PUSH SPDT 0.4VA 20V C&K |
2,674 |
|
Datasheet |
EP | Tray | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
EP12SD1AMESWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,539 |
|
Datasheet |
EP | Tray | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
EP12SD1AVKESWITCH PUSH SPDT 0.4VA 20V C&K |
2,672 |
|
Datasheet |
EP | Tray | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
EP12SD1CLESWITCH PUSHBUTTON SPDT 1A 120V C&K |
3,745 |
|
Datasheet |
EP | Tray | Obsolete | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
KM3301RR05BESWITCH PUSH SPST-NC 0.4VA 20V C&K |
1,708 |
|
Datasheet |
KM | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | White | - | - | Quick Connect - 0.110" (2.8mm) | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
KM3301RR05QESWITCH PUSH SPST-NC 1A 125V C&K |
4,306 |
|
Datasheet |
KM | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 125 V | 28 V | Plunger for Cap | No Marking | White | - | - | Quick Connect - 0.110" (2.8mm) | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

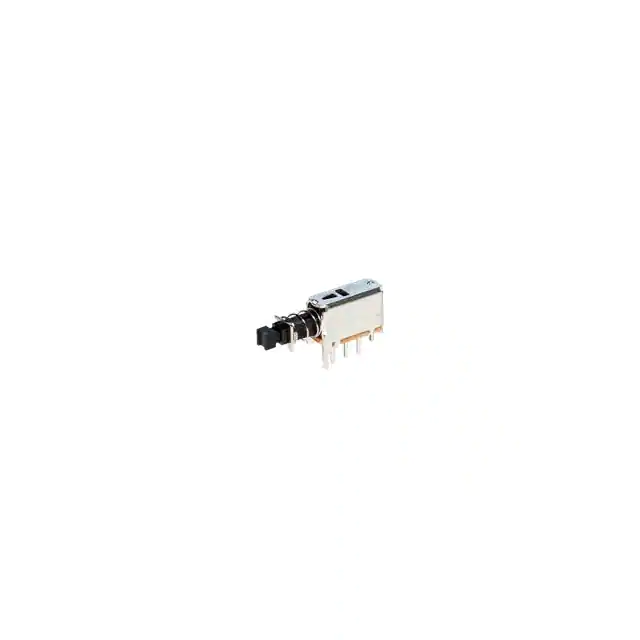

PN21LANA03QESWITCH PUSH DPDT 0.2A 30V C&K |
3,405 |
|
Datasheet |
PN | Bag | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
TP11LT9V3LESWITCH PUSH SPST-NO 1A 120V C&K |
3,107 |
|
Datasheet |
TP | Tray | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
TP11LTV3LESWITCH PUSH SPST-NO 1A 120V C&K |
4,322 |
|
Datasheet |
TP | Tray | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
TP11SH9AVKESWITCH PUSH SPST-NO 0.4VA 20V C&K |
3,287 |
|
Datasheet |
TP | Tray | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
