Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP11SHWKESWITCH PUSH SPST-NO 0.4VA 20V C&K |
2,473 |
|
Datasheet |
TP | Tray | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Wire Wrap | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
U811SD9AV2LESWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,503 |
|
Datasheet |
8020 | Tray | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
|
U821SD9ALESWITCH PUSHBUTTON DPDT 1A 120V C&K |
3,096 |
|
Datasheet |
8020 | Tray | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|

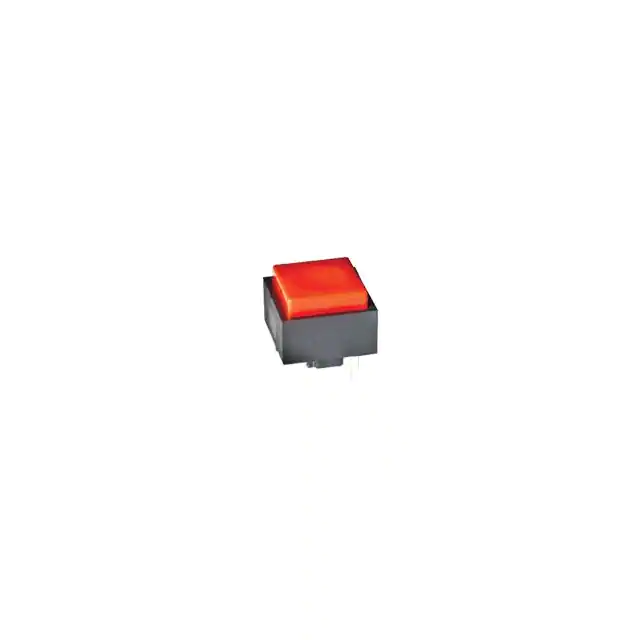

KS12R23CQDSWITCH PUSH SPDT 0.025A 50V C&K |
4,829 |
|
Datasheet |
KS | Bulk | Obsolete | Through Hole | Keyswitch | SPDT | On-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
|
KS11R26CQDSWITCH PUSH SPST-NO 0.025A 50V C&K |
2,954 |
|
- |
KS | Bulk | Discontinued at Digi-Key | Through Hole | Keyswitch | SPST-NO | Off-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
|
KS11R22CGDSWITCH PUSH SPST-NO 0.025A 50V C&K |
3,283 |
|
Datasheet |
KS | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
K12ABK25NSWITCH PUSH SPST-NO 0.1A 30V C&K |
2,555 |
|
Datasheet |
K12 | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
K12ALBU15NLV328SWITCH PUSH SPST-NO 0.1A 30V C&K |
1,925 |
|
Datasheet |
K12 | Bulk | Obsolete | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | LED, Blue | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
|
K12AYE1.52.5NSWITCH PUSH SPST-NO 0.1A 30V C&K |
4,960 |
|
Datasheet |
K12 | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Yellow | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
|
K12AYE12.5NSWITCH PUSH SPST-NO 0.1A 30V C&K |
2,028 |
|
Datasheet |
K12 | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Yellow | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
