Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E221SD1V4LESWITCH PUSHBUTTON DPDT 1A 120V C&K |
4,127 |
|
Datasheet |
E020 | Bulk | Obsolete | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
ELUMOASAQ5C12SWITCH PUSH SPDT 0.25A 50V C&K |
4,477 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Amber | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
EP11S2D1SAKESWITCH PUSH SPST-NO 0.4VA 20V C&K |
1,004 |
|
Datasheet |
EP | Tray | Obsolete | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
EP11SD1ALESWITCH PUSH SPST-NO 1A 120V C&K |
2,591 |
|
Datasheet |
EP | Tray | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
EP11SD1AMESWITCH PUSH SPST-NO 1A 120V C&K |
4,943 |
|
Datasheet |
EP | Tray | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
EP11SD1CKESWITCH PUSH SPST-NO 0.4VA 20V C&K |
3,943 |
|
Datasheet |
EP | Tray | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
EP11SD1V3KESWITCH PUSH SPST-NO 0.4VA 20V C&K |
3,886 |
|
Datasheet |
EP | Tray | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
EP11SD1WKESWITCH PUSH SPST-NO 0.4VA 20V C&K |
2,601 |
|
Datasheet |
EP | Tray | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Wire Wrap | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

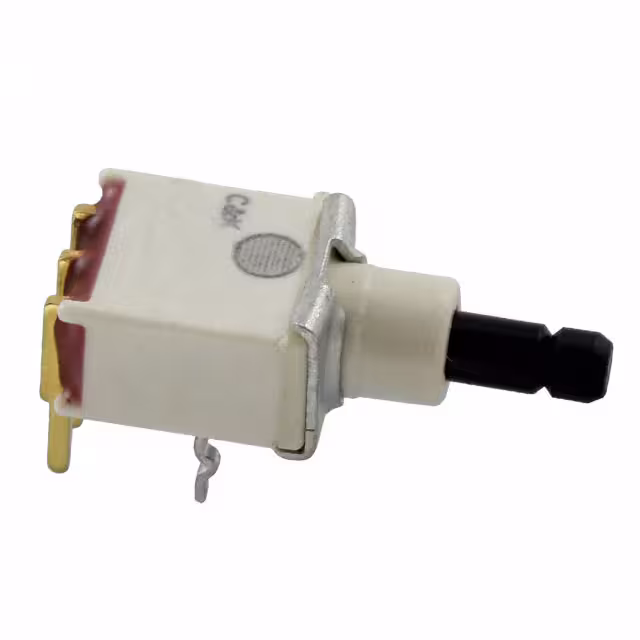

EP12RD1ABESWITCH PUSH SPDT 0.4VA 20V C&K |
4,350 |
|
Datasheet |
EP | Tray | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
EP12RD1AVBESWITCH PUSH SPDT 0.4VA 20V C&K |
4,945 |
|
Datasheet |
EP | Tray | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
