Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

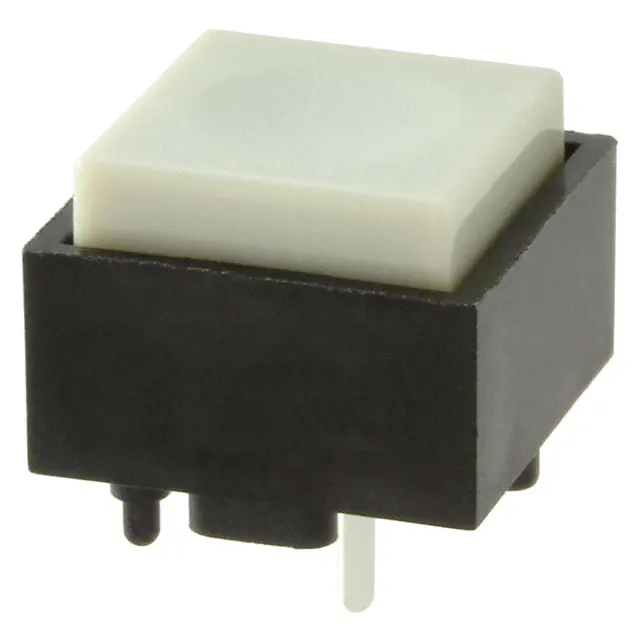

KS11R29CQDSWITCH PUSH SPST-NO 0.025A 50V C&K |
3,157 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | Gray | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|

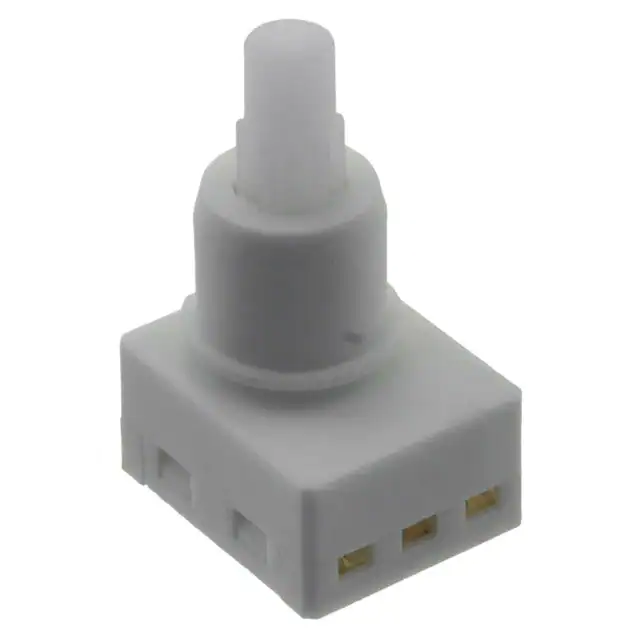

PS-12G01SWITCH PUSHBUTTON SPDT 1A 14V C&K |
3,477 |
|
Datasheet |
PS, COMAX | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 1A (DC) | - | 14 V | Round, Button | No Marking | Natural | - | - | Socketable | - | - | - | -20°C ~ 70°C |
|

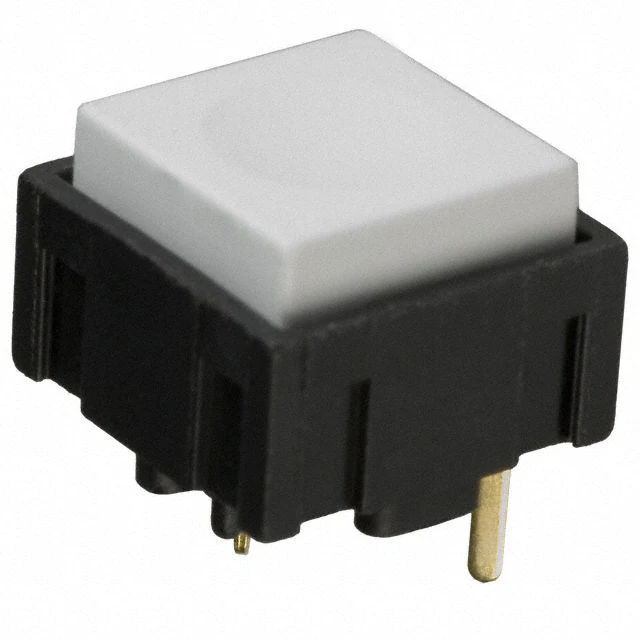

KS11R21CBDSWITCH PUSH SPST-NO 0.4VA 20V C&K |
1,171 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|

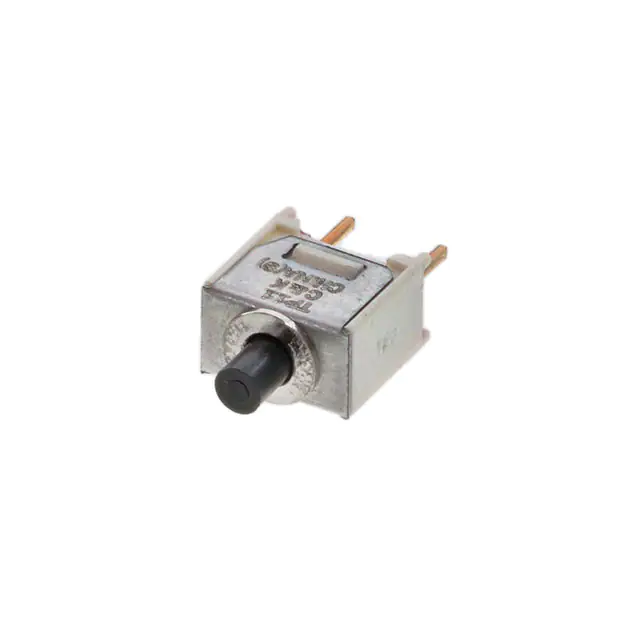

TP11MS9CBESWITCH PUSH SPST-NO 0.4VA 20V C&K |
4,788 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|

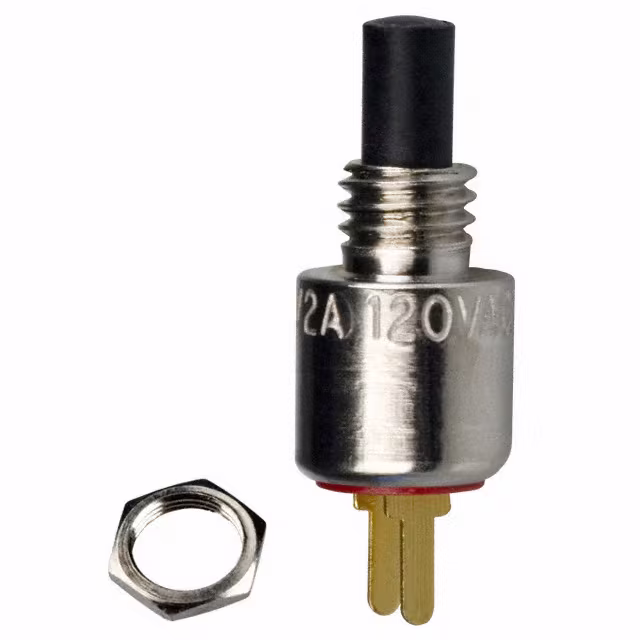

8631CBD2SWITCH PUSH SPST-NO 0.4VA 20V C&K |
2,296 |
|
Datasheet |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.37mm Dia | -30°C ~ 65°C |
|
8161SH9AQE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
4,963 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|

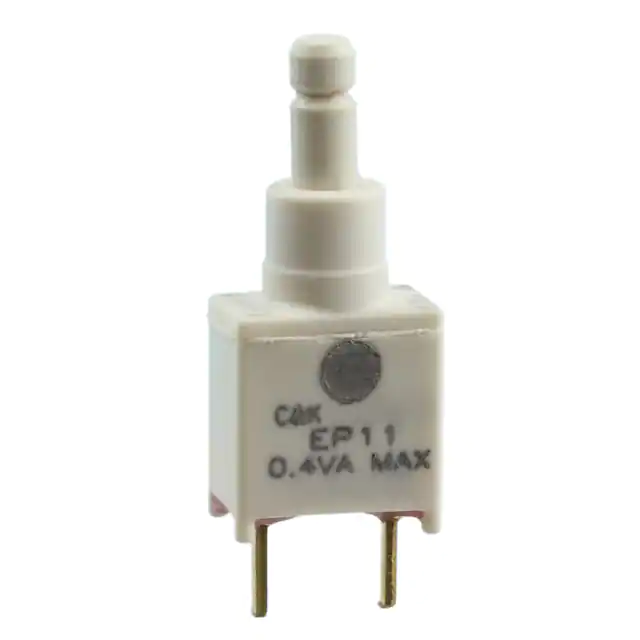

EP11RD1CBESWITCH PUSH SPST-NO 0.4VA 20V C&K |
2,554 |
|
Datasheet |
EP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

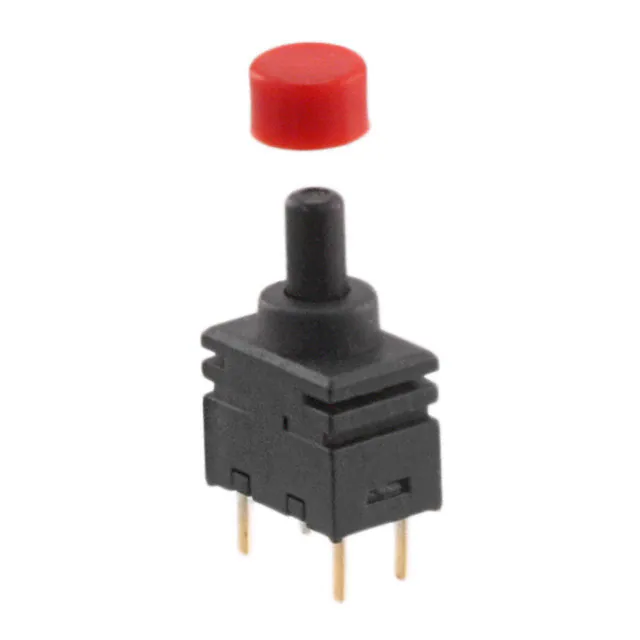

FP11SPC1B1TP03SWITCH PUSH SPST-NO 0.4VA 28V C&K |
4,752 |
|
Datasheet |
FP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -20°C ~ 80°C |
|

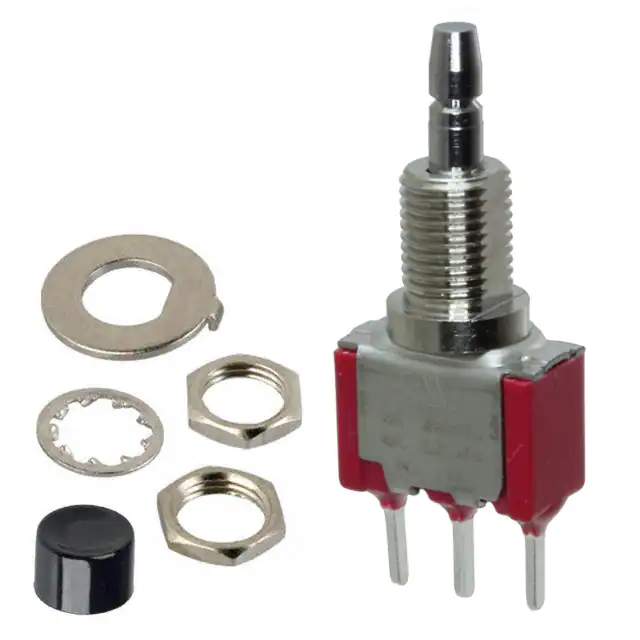

8168LHCQE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
4,459 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

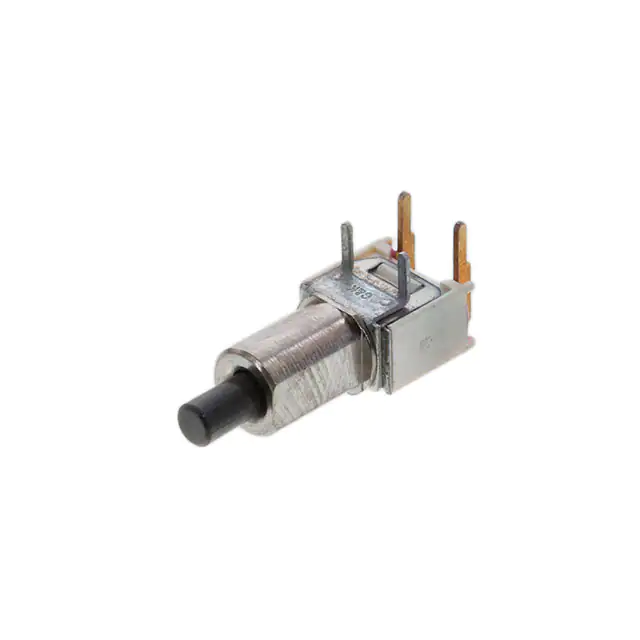

TP11LT9ABESWITCH PUSH SPST-NO 0.4VA 20V C&K |
2,208 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
