Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E121SD1AGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
3,701 |
|
Datasheet |
E020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
8225J81ZBE22SWITCH PUSH DPDT 0.4VA 20V C&K |
1,402 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|

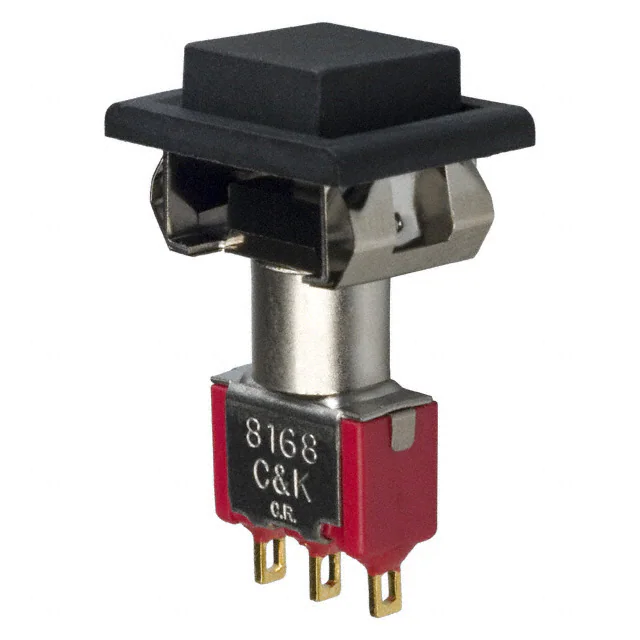

8168J81ZGE22SWITCH PUSHBUTTON SPDT 6A 120V C&K |
1,918 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
U811SHCGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
3,108 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

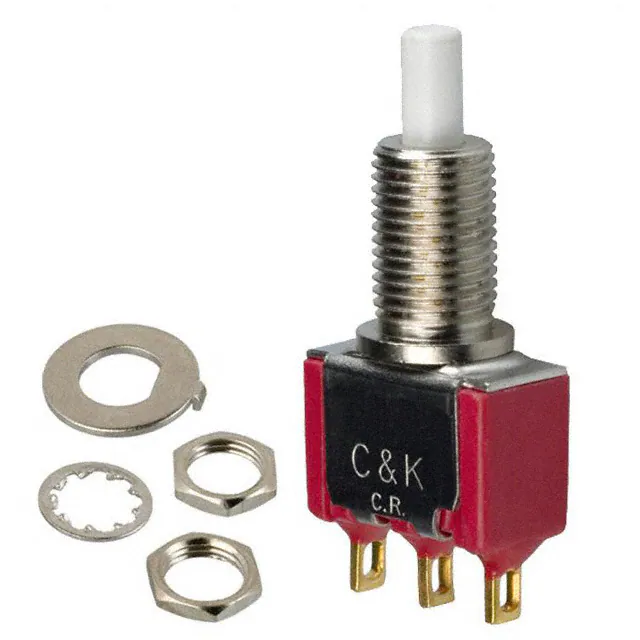

8121SYZGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
3,294 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|

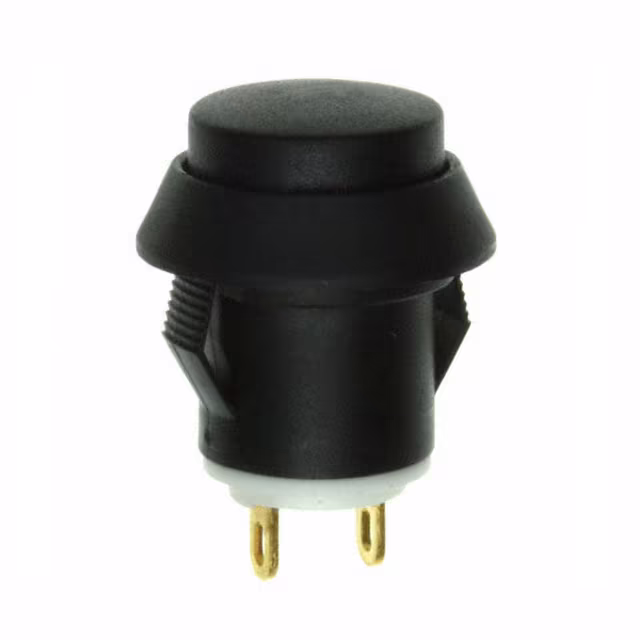

AP4E200SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
1,515 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|

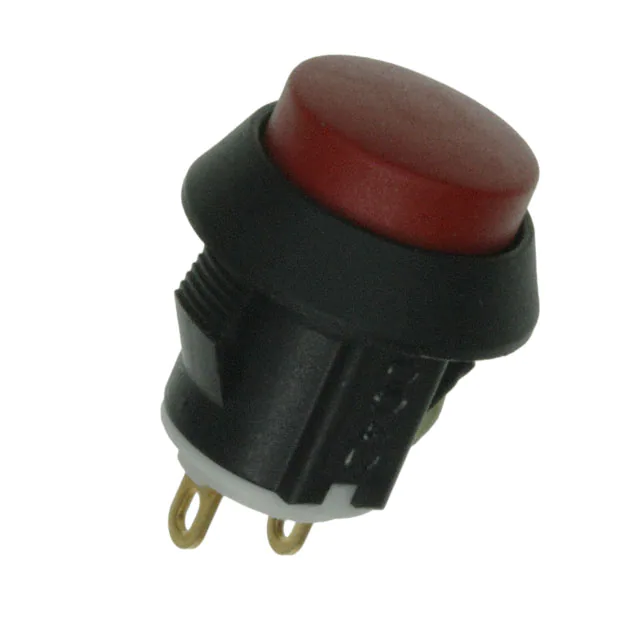

AP4E300SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
2,769 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|

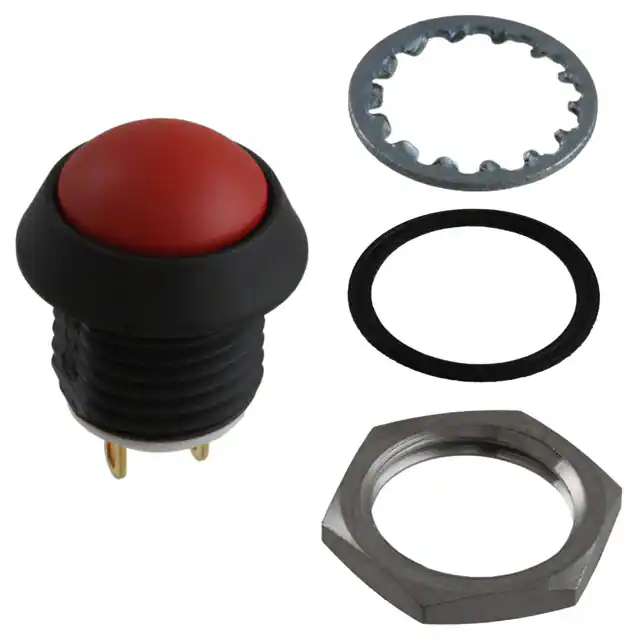

AP4D300TZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
2,384 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|

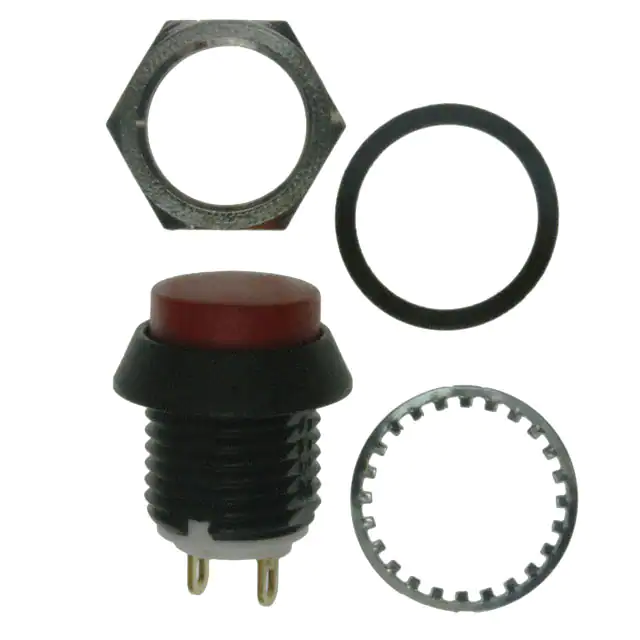

AP4E300TZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
4,943 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|

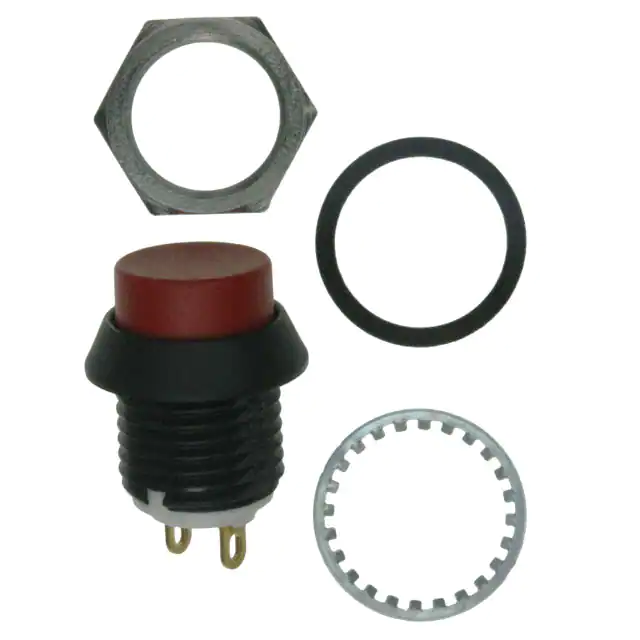

AP2C300TZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
2,984 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
