Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8168SH9ABE1SWITCH PUSH SPDT 0.4VA 20V C&K |
1,776 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
ELUMOATHQ2C22SWITCH PUSH SPDT 0.25A 50V C&K |
1,173 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Green/Red | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
ELUMEETHQ6C12SWITCH PUSH SPDT 0.25A 50V C&K |
1,483 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Green | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
8161SH9V3BE2SWITCH PUSH SPDT 0.4VA 20V C&K |
3,398 |
|
Datasheet |
8060 | Tray | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|

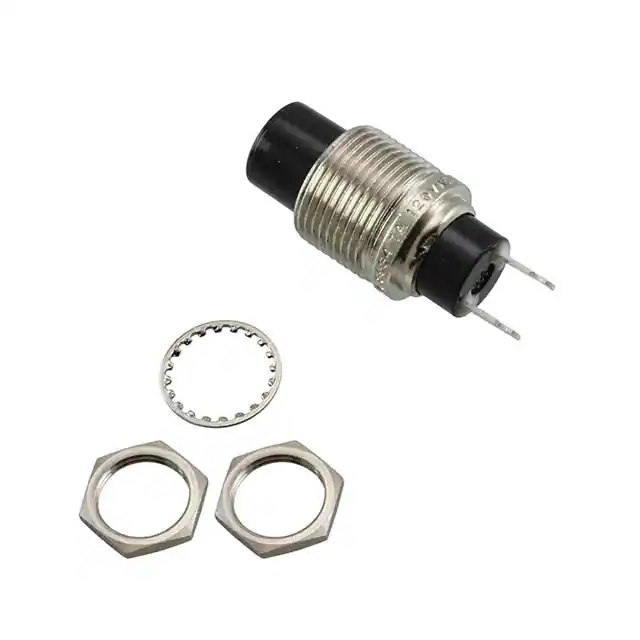

8534TZQE2SWITCH PUSH SPST-NC 1A 120V C&K |
4,272 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|

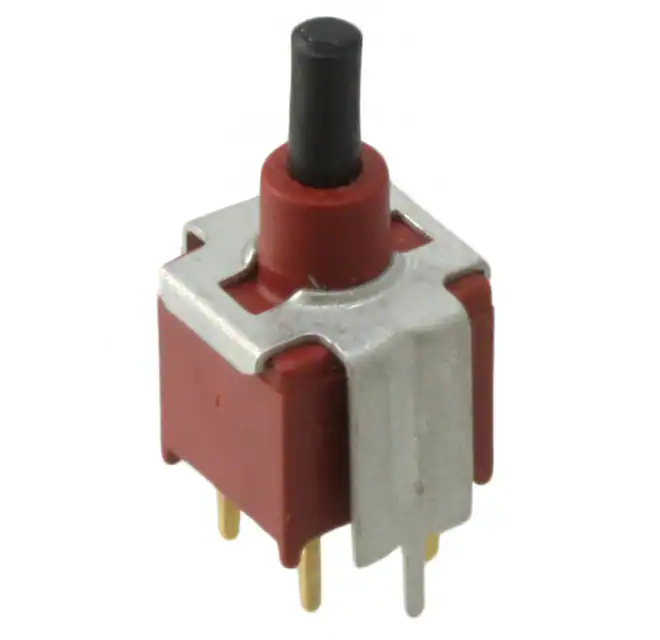

EP21SD1V3BESWITCH PUSH DPST-NO 0.4VA 20V C&K |
3,915 |
|
Datasheet |
EP | Bulk | Active | Through Hole | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
8225SHZBESWITCH PUSH DPDT 0.4VA 20V C&K |
4,128 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
U811SHZGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,668 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

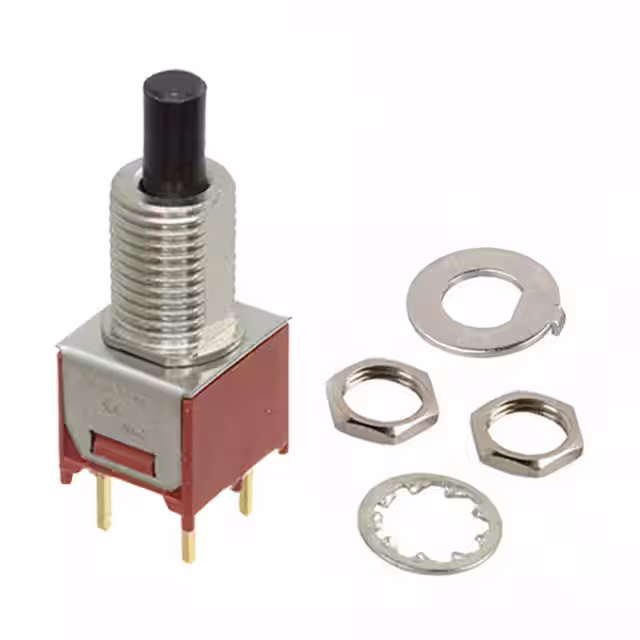

TP21LTCGESWITCH PUSH DPST-NO 1A 120V C&K |
2,982 |
|
Datasheet |
TP | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
8168J81ZQE22SWITCH PUSHBUTTON SPDT 6A 120V C&K |
1,867 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
