Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

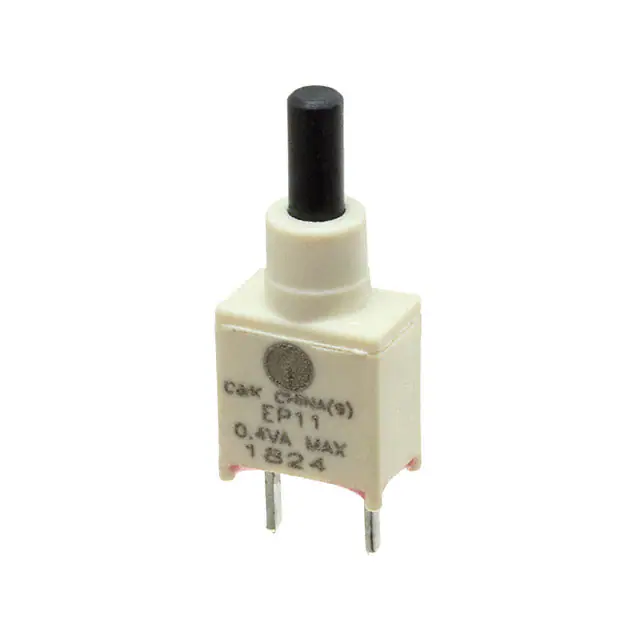

EP11SD1CPESWITCH PUSH SPST-NO 0.4VA 20V C&K |
3,220 |
|
Datasheet |
EP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

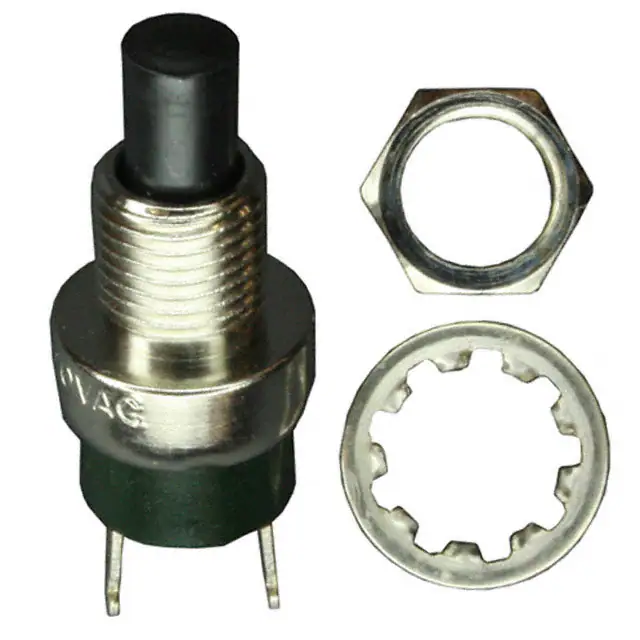

8532SZQE2SWITCH PUSH SPST-NO 1A 120V C&K |
3,097 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

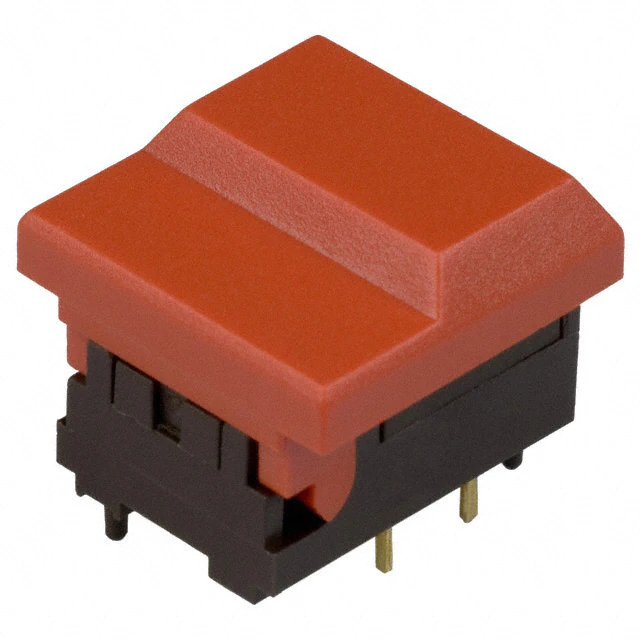

SET RD AU OASWITCH PUSH SPDT 0.01A 24V C&K |
4,962 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
PLP16C1RD3SE6LOCK, ROUND, IP65, NON-ILLUMINAT C&K |
3,461 |
|
Datasheet |
PLP16 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 1A (DC) | 250 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|

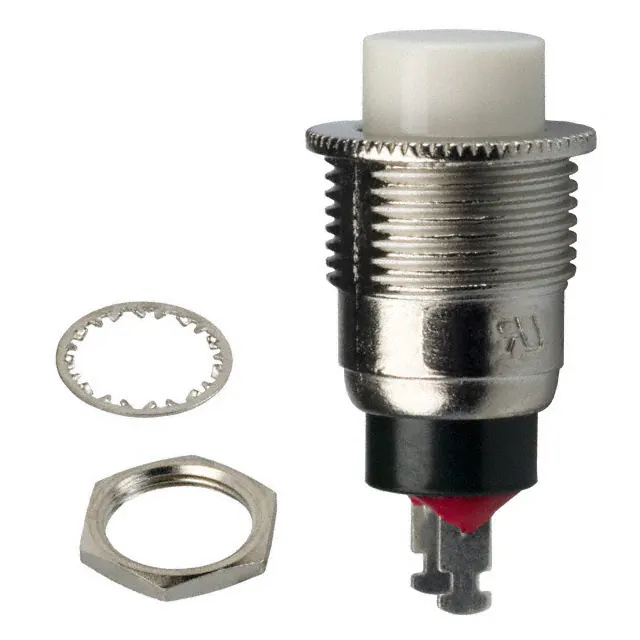

8532T1ZQE1SWITCH PUSH SPST-NO 1A 120V C&K |
2,534 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
E125SD1CBESWITCH PUSH SPDT 0.4VA 20V C&K |
4,075 |
|
Datasheet |
E020 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
8125SD9AV2BESWITCH PUSH SPDT 0.4VA 20V C&K |
3,894 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|

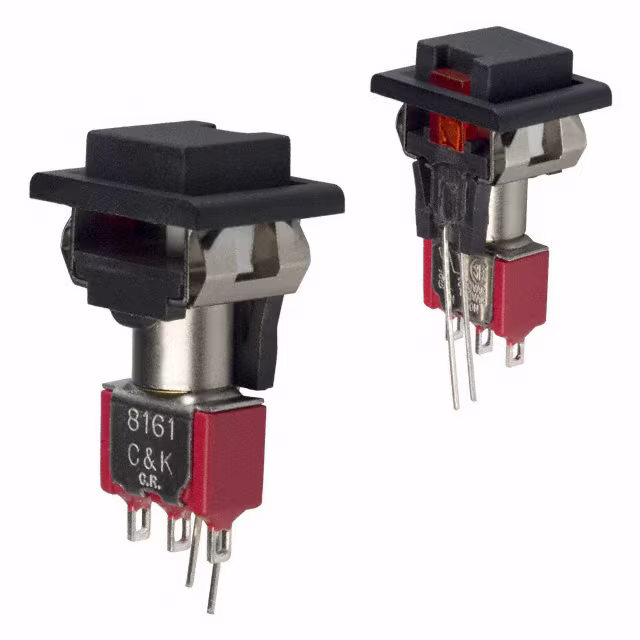

8161J86ZQE223SWITCH PUSHBUTTON SPDT 6A 120V C&K |
3,188 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|

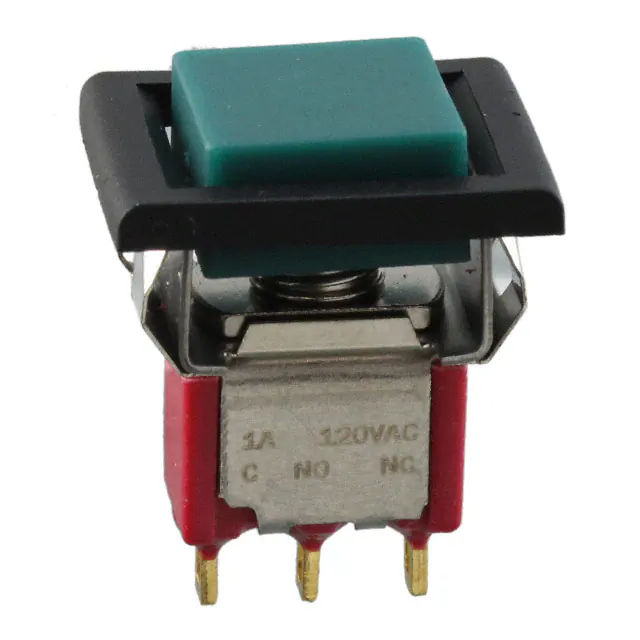

8121J81ZGE62SWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,262 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|

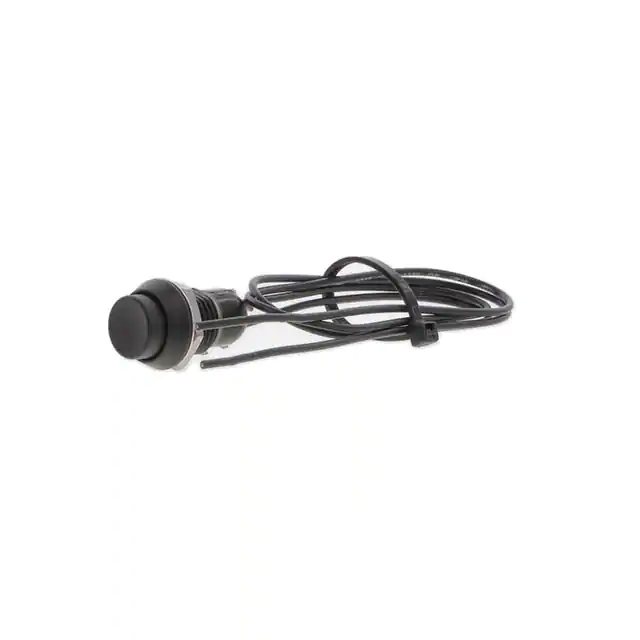

AP4C200TWBEPB SWITCH 4N CONCAVE ACT BLACK C C&K |
1,524 |
|
Datasheet |
AP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
