Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
554-1231-100IND SWITCH PB M/F Dialight |
2,896 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
554-1221M/F BASIC SWITCH 5541221100 Dialight |
117 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
513-1701-604Pushbutton Switch, SPDT, Momenta Dialight |
3,853 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
554-2121-100SWITCH BASE Dialight |
2,177 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
513-1406-001M/F BASIC SWITCH 5131401604 Dialight |
3,623 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|

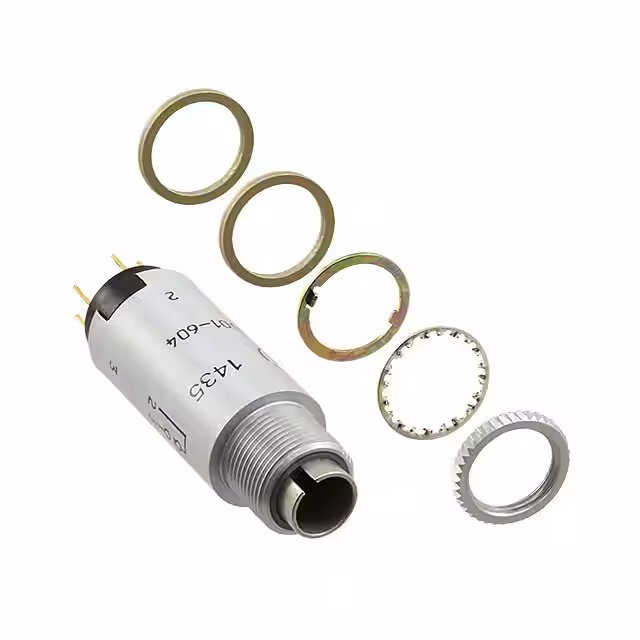

5131501604SWITCH PUSHBUTTON DPST 5A 125V Dialight |
1,994 |
|
Datasheet |
513 | Bulk | Active | Panel Mount, Rear | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.70mm Dia | - |
|

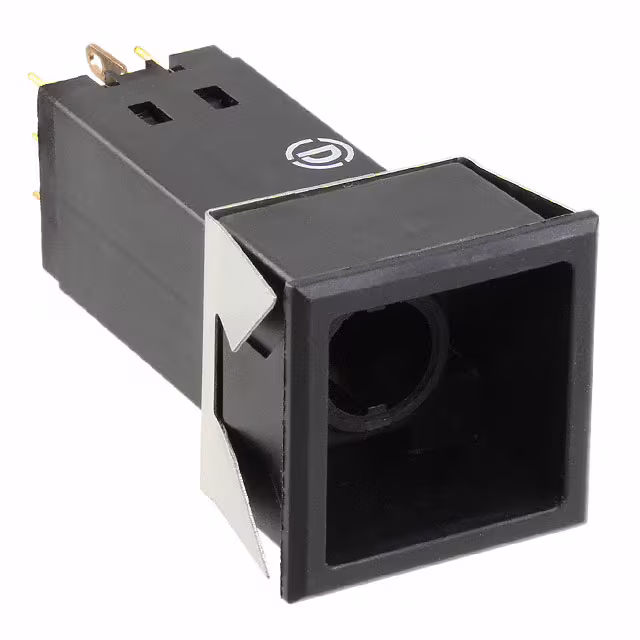

5541231411SWITCH PUSHBUTTON DPDT 7A 125V Dialight |
3,533 |
|
Datasheet |
554 | Bulk | Discontinued at Digi-Key | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 7A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 22.35mm x 22.35mm | - |
|
|
5541221411SWITCH PUSHBUTTON DPDT 7A 125V Dialight |
1,520 |
|
Datasheet |
554 | Bulk | Discontinued at Digi-Key | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 7A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 22.35mm x 22.35mm | - |
|
|
5542221100SWITCH PUSHBUTTON DPDT 1A 125V Dialight |
3,585 |
|
- |
554 | Bulk | Obsolete | Panel Mount, Rear | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.70mm Dia | - |
|
|
5130601604SWITCH BASE 2CIRCUIT ALL SIZES Dialight |
1,526 |
|
Datasheet |
513 | Bulk | Obsolete | Panel Mount, Rear | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 100mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.70mm Dia | - |
