Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5130110001SWITCH PUSH SPST-NO 3A 125V Dialight |
3,405 |
|
Datasheet |
513 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.19mm x 22.10mm | - |
|
|
5130111001SWITCH PUSH SPST-NO 3A 125V Dialight |
3,707 |
|
Datasheet |
513 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 22.43mm x 22.43mm | - |
|
|
5130310001SWITCH PUSHBUTTON DPST 3A 125V Dialight |
3,324 |
|
Datasheet |
513 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.19mm x 22.10mm | - |
|
|
5541231311SWITCH PUSHBUTTON DPDT 7A 125V Dialight |
4,496 |
|
Datasheet |
554 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 7A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.35mm x 19.18mm | - |
|
5542121211SWITCH PUSHBUTTON SPDT 1A 125V Dialight |
3,510 |
|
Datasheet |
554 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.18mm x 19.18mm | - |
|
|
5542221311SWITCH PUSHBUTTON DPDT 1A 125V Dialight |
3,062 |
|
Datasheet |
554 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.35mm x 19.18mm | - |
|
5130101604SWITCH PUSH SPST-NO 3A 125V Dialight |
3,419 |
|
Datasheet |
513 | Bulk | Obsolete | Panel Mount, Rear | Standard, Illuminated | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.70mm Dia | - |
|

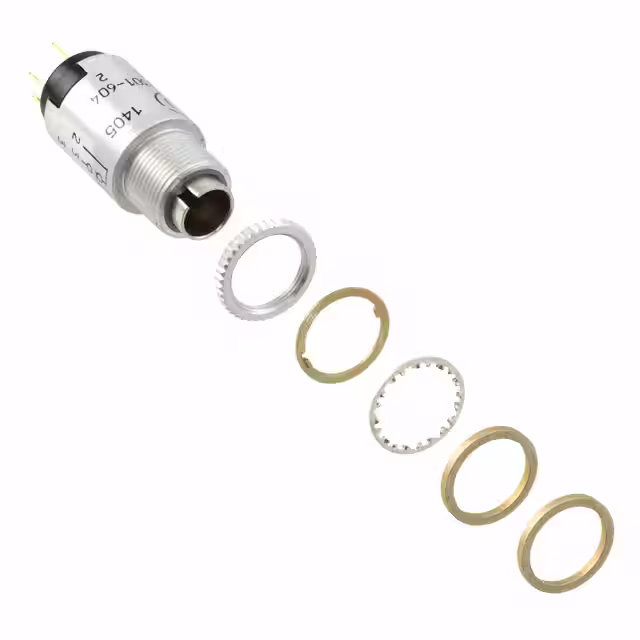

5130301604SWITCH PUSHBUTTON DPST 3A 125V Dialight |
1,170 |
|
Datasheet |
513 | Bulk | Obsolete | Panel Mount, Rear | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.70mm Dia | - |
|

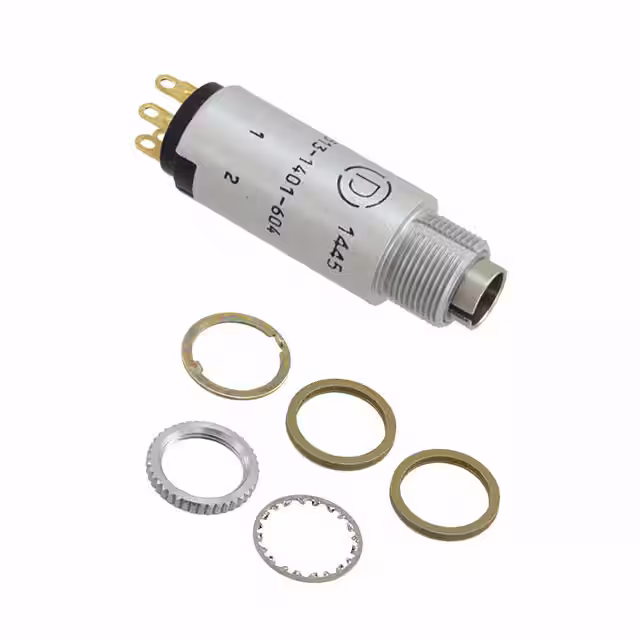

5131401604SWITCH PUSHBUTTON SPDT 5A 125V Dialight |
2,592 |
|
Datasheet |
513 | Bulk | Obsolete | Panel Mount, Rear | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.70mm Dia | - |
|
5542231SWITCH M/F BASIC PB 5542231100 Dialight |
4,449 |
|
- |
554 | Bulk | Obsolete | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
