Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5541121211SWITCH PB SPDT 5/8" SQ Dialight |
2,141 |
|
- |
554 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 7A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.25mm x 19.25mm | - |
|
|
5130109001SWITCH PUSH SPST-NO 3A 125V Dialight |
4,397 |
|
- |
513 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.19mm x 22.10mm | - |
|
|
5130401600SWITCH BASE ASSEMBLY 12V Dialight |
2,044 |
|
- |
513 | Bulk | Obsolete | - | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|
|
5130409001SWITCH BASIC M/F 5130401604 12V Dialight |
4,029 |
|
- |
513 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.19mm x 22.10mm | - |
|
|
5130606001SWITCH SNAP MOM 5/8" AU 12V Dialight |
1,015 |
|
- |
513 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO | On-Mom, Off-Mom | 100mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.25mm x 19.25mm | - |
|
|
5131707001SWITCH PUSHBUTTON DPST 5A 125V Dialight |
3,988 |
|
- |
513 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 19.13mm Dia | - |
|
|
5541121311SWITCH PUSHBUTTON SPDT 7A 125V Dialight |
3,897 |
|
- |
554 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 7A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.35mm x 19.18mm | - |
|
|
5541221111SWITCH PUSHBUTTON DPDT 7A 125V Dialight |
2,521 |
|
Datasheet |
554 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 7A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.26mm x 16.26mm | - |
|

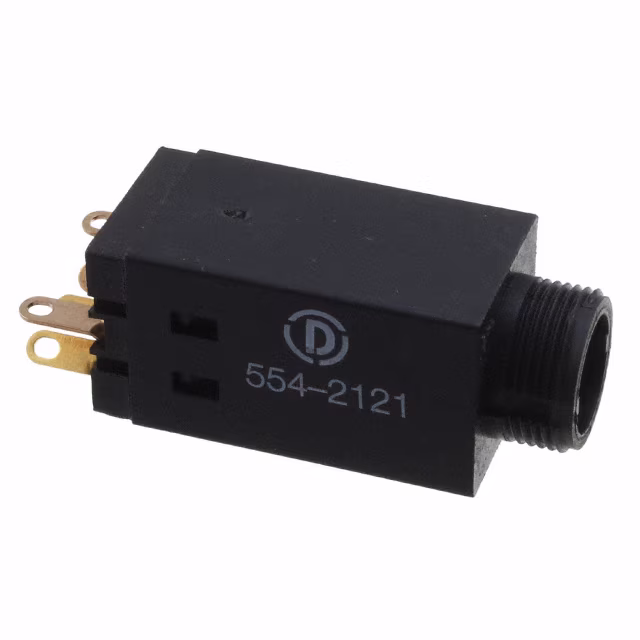

5542121100SWITCH PUSHBUTTON SPDT 1A 125V Dialight |
3,914 |
|
- |
554 | Bulk | Obsolete | Panel Mount, Rear | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.70mm Dia | - |
|
|
5130107001SWITCH PUSH SPST-NO 3A 125V Dialight |
2,772 |
|
- |
513 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 19.13mm Dia | - |
