Specialty Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Inductance | For Use With/Related Products | Mounting Type | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

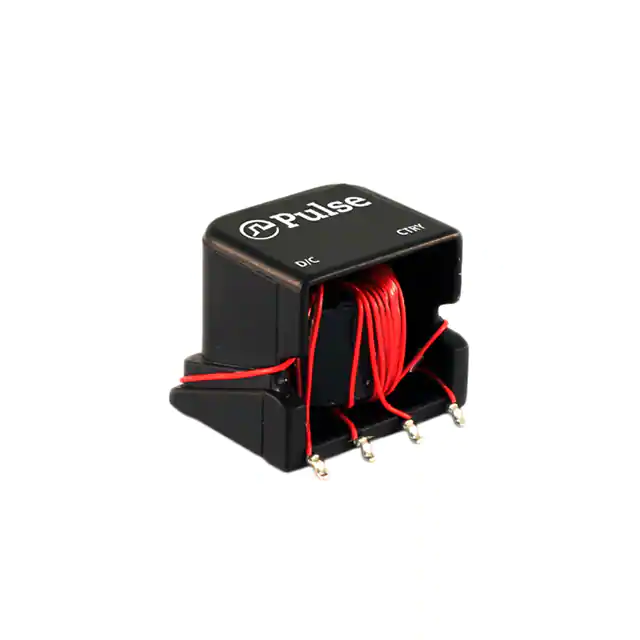

PH9400.111ANLTTRANSFORMER 1.21MH SMD Pulse Electronics |
4,067 |
|
Datasheet |
PH9400 | Tape & Reel (TR) | Active | 1.21 mH | - | Surface Mount | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.559" (14.20mm) |
|
PG1427.003NLTTRANSFORMER 1.6MH SMD Pulse Electronics |
883 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1.6 mH | - | Surface Mount | - | 0.118" (3.00mm) |
|

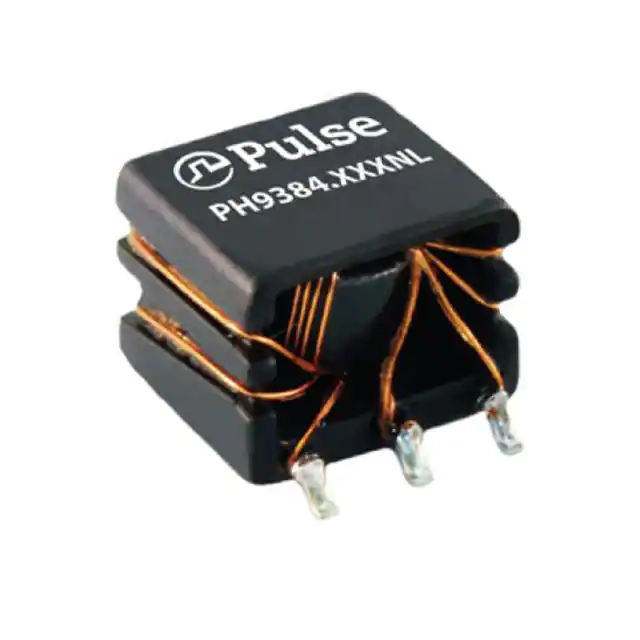

PH9384.012NLTTRANSFORMER 538UH MAX253 SMD Pulse Electronics |
13,661 |
|
Datasheet |
PH9384 | Tape & Reel (TR) | Active | 538 µH | MAX253 | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) |
|

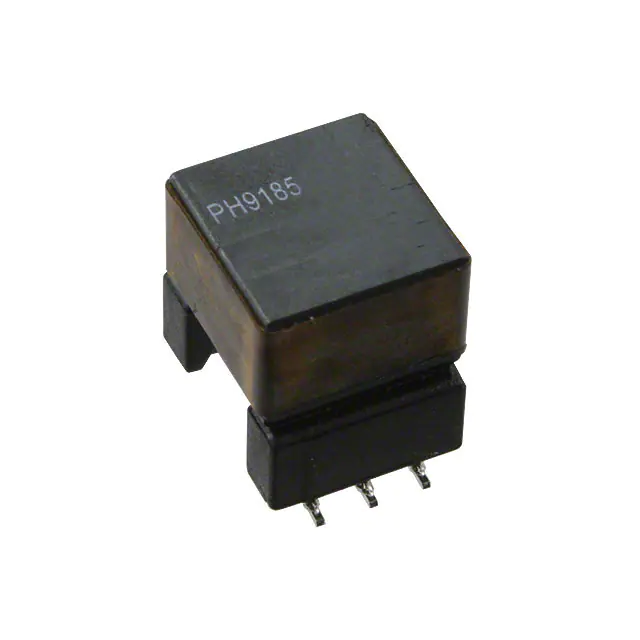

PH9185.038NLTRANSFORMER 310UH MAX253 SMD Pulse Electronics |
3,235 |
|
Datasheet |
PH9185 | Tray | Active | 310 µH | MAX253 | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) |
|
|
PH9185.034NLTRANSFORMER 750UH MAX253 SMD Pulse Electronics |
980 |
|
Datasheet |
PH9185 | Tray | Active | 750 µH | MAX253 | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) |
|
|
PH9400.111NLTTRANSFORMER 4.5MH SMD Pulse Electronics |
635 |
|
Datasheet |
PH9400 | Tape & Reel (TR) | Active | 4.5 mH | - | Surface Mount | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.559" (14.20mm) |
|
PE-65812NLTTRANSFORMER 2.5MH SMD Pulse Electronics |
6,081 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2.5 mH | - | Surface Mount | 0.475" L x 0.460" W (12.07mm x 11.68mm) | 0.340" (8.64mm) |
|
|
PH9400.566ANLTTRANSFORMER 1.12MH SMD Pulse Electronics |
619 |
|
Datasheet |
PH9400 | Tape & Reel (TR) | Active | 1.12 mH | - | Surface Mount | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.559" (14.20mm) |
|
|
PH9400.211ANLTTRANSFORMER 1.62MH SMD Pulse Electronics |
590 |
|
Datasheet |
PH9400 | Tape & Reel (TR) | Active | 1.62 mH | - | Surface Mount | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.559" (14.20mm) |
|

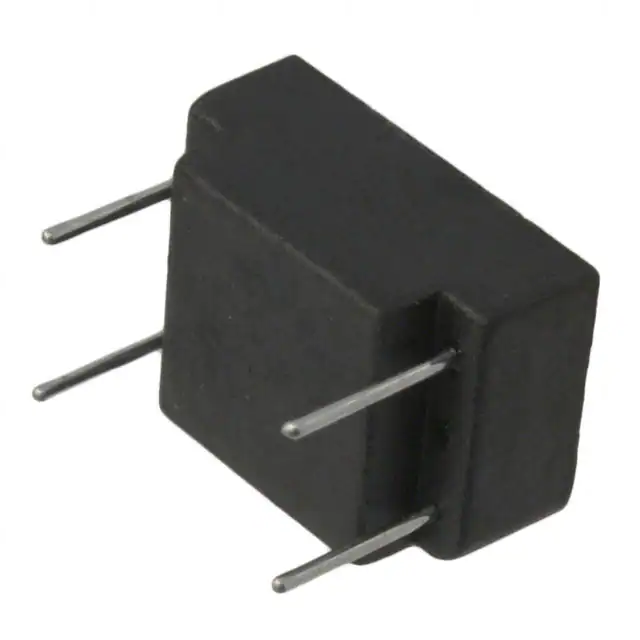

PE-65612NLXFMR 2.5MH CS8401/CS8402 TH Pulse Electronics |
1,031 |
|
Datasheet |
- | Tube | Active | 2.5 mH | CS8401, CS8402, CS8403, CS8404 Audio Transmitters | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) |
