Specialty Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Inductance | For Use With/Related Products | Mounting Type | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

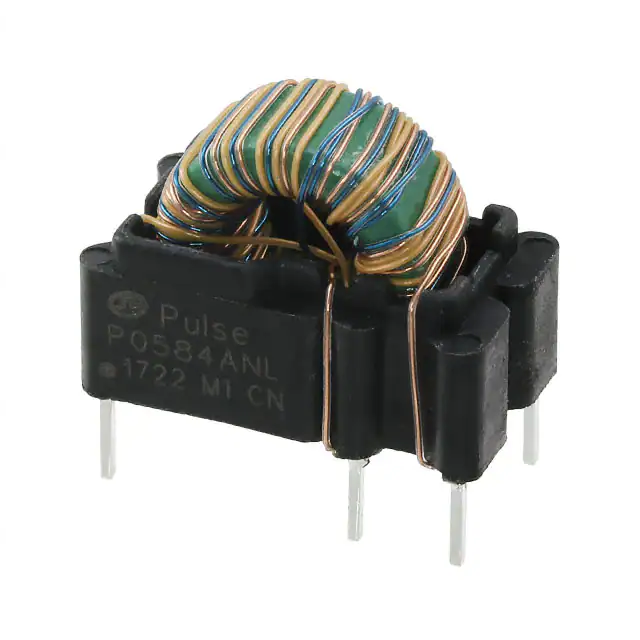

P0584ANLTRANSFORMER TH Pulse Electronics |
5,484 |
|
Datasheet |
- | Tray | Active | - | - | Through Hole | 0.810" L x 0.480" W (20.57mm x 12.19mm) | 0.750" (19.05mm) |
|

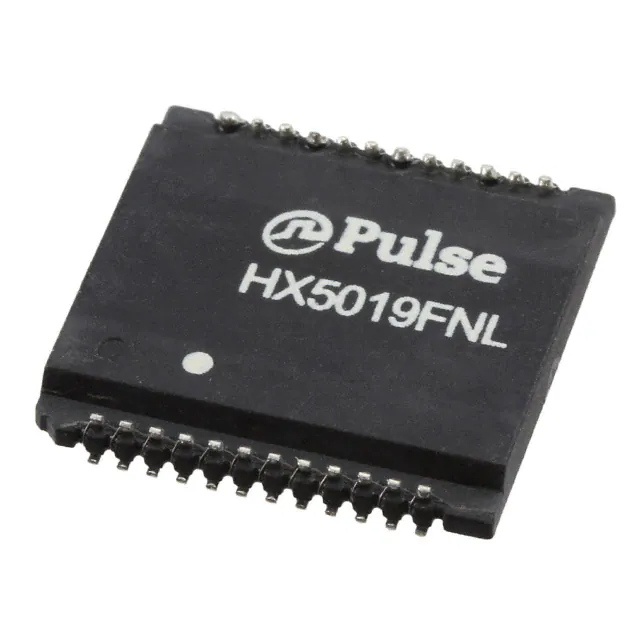

HX5019FNLTRANSFORMER 350UH SMD Pulse Electronics |
564 |
|
Datasheet |
- | Tube | Active | 350 µH | - | Surface Mount | 0.780" L x 0.750" W (19.81mm x 19.05mm) | 0.772" (19.60mm) |
|
PH9384.089NLTTRANSFORMER 538UH MAX253 SMD Pulse Electronics |
1,037 |
|
Datasheet |
PH9384 | Tape & Reel (TR) | Active | 538 µH | MAX253 | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) |
|
PH9085.034NLTTRANSFORMER 1.02MH MAX253 SMD Pulse Electronics |
21,669 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1.02 mH | MAX253 | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) |
|
|
PH9085.012NLTTRANSFORMER 1.02MH MAX253 SMD Pulse Electronics |
2,225 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1.02 mH | MAX253 | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) |
|
PH9084.021NLTTRANSFORMER SMD Pulse Electronics |
2,094 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | Surface Mount | - | 0.211" (5.35mm) |
|
|
PH9384.011NLTTRANSFORMER 538UH MAX253 SMD Pulse Electronics |
2,767 |
|
Datasheet |
PH9384 | Tape & Reel (TR) | Active | 538 µH | MAX253 | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) |
|
|
PH9084.011NLTTRANSFORMER SMD Pulse Electronics |
2,527 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | Surface Mount | - | 0.211" (5.35mm) |
|

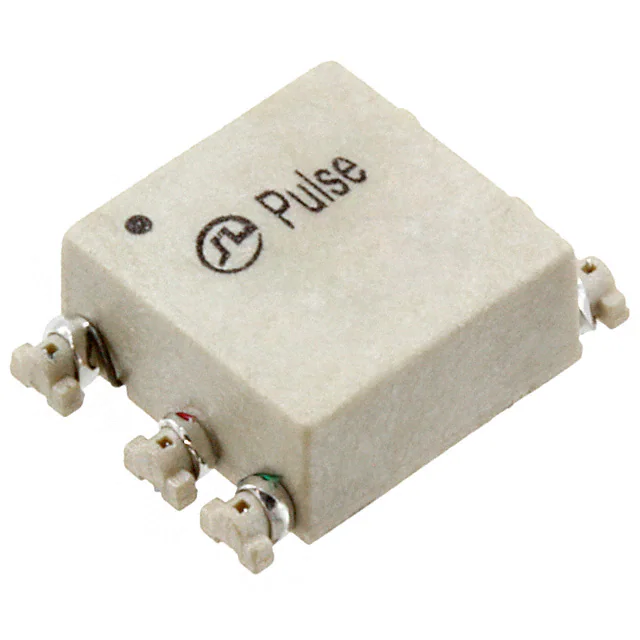

PA0173NLTTRANSFORMER 980UH SMD Pulse Electronics |
247 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 980 µH | - | Surface Mount | 0.340" L x 0.330" W (8.64mm x 8.38mm) | 0.160" (4.06mm) |
|
PH9385.038NLTXFMR PUSH-PULL RS-485 COMM SMD Pulse Electronics |
698 |
|
Datasheet |
PH9385 | Tape & Reel (TR) | Active | 2.6 mH | RS-485 Communications | Surface Mount | 0.630" L x 0.669" W (16.00mm x 17.00mm) | 0.295" (7.50mm) |
