Specialty Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Inductance | For Use With/Related Products | Mounting Type | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-65812FNLTTRANSFORMER 2.5MH SMD Pulse Electronics |
2,039 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2.5 mH | - | Surface Mount | 0.500" L x 0.566" W (12.70mm x 14.37mm) | 0.340" (8.64mm) |
|
PH9085.038NLTTRANSFORMER 1.02MH MAX253 SMD Pulse Electronics |
2,715 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1.02 mH | MAX253 | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) |
|
PE-64552NLTRANSFORMER 2.5MH TH Pulse Electronics |
792 |
|
Datasheet |
- | Tube | Active | 2.5 mH | - | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) |
|

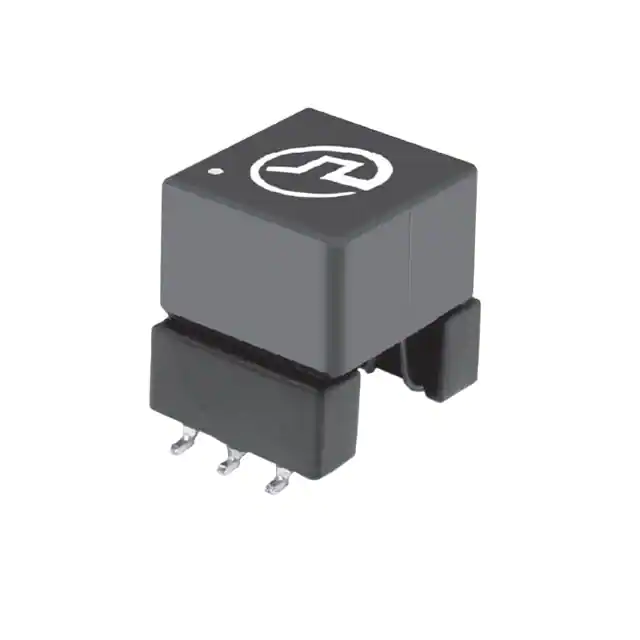

PH9184.011NLTTRANSFORMER 12.2MH SMD Pulse Electronics |
246 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 12.2 mH | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) |
|
|
P0585ANLTRANSFORMER TH Pulse Electronics |
595 |
|
Datasheet |
- | Tray | Active | - | - | Through Hole | 0.810" L x 0.480" W (20.57mm x 12.19mm) | 0.750" (19.05mm) |
|
|
PH9085.043NLTTRANSFORMER 1.16MH MAX253 SMD Pulse Electronics |
4,145 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1.16 mH | MAX253 | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) |
|

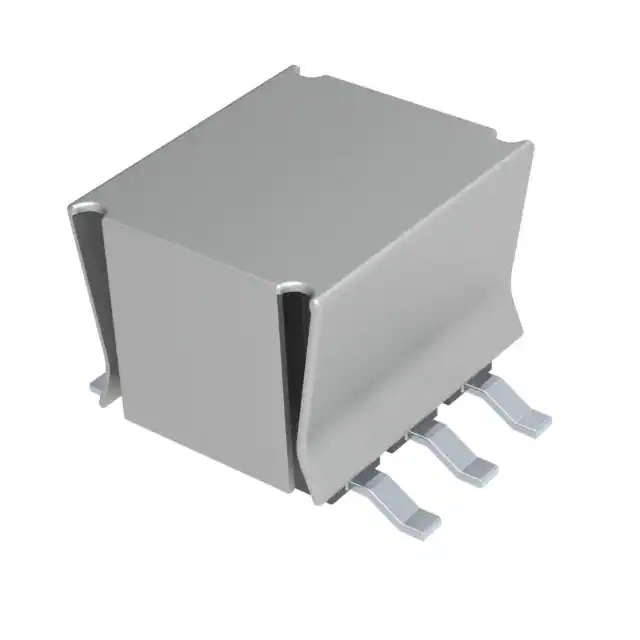

PH9084.034NLTTRANSFORMER 256UH SMD Pulse Electronics |
1,751 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 256 µH | - | Surface Mount | - | 0.211" (5.35mm) |
|

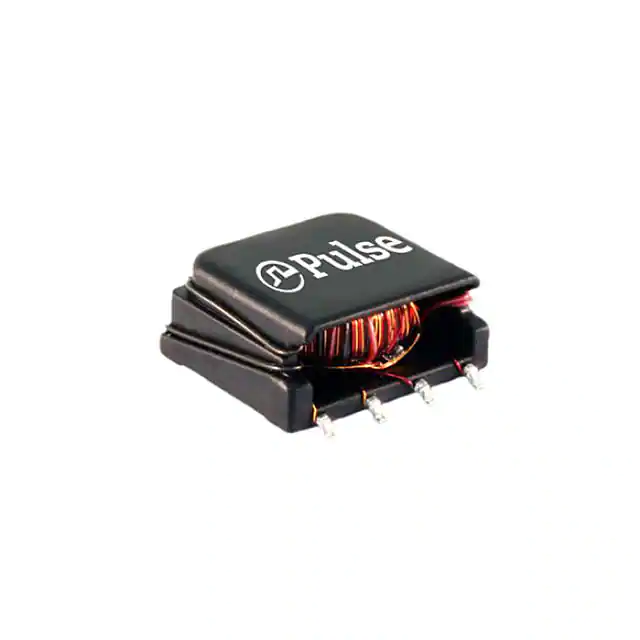

PH9385.012NLTXFMR PUSH-PULL RS-485 COMM SMD Pulse Electronics |
220 |
|
Datasheet |
PH9385 | Tape & Reel (TR) | Active | 2.6 mH | RS-485 Communications | Surface Mount | 0.630" L x 0.512" W (16.00mm x 13.00mm) | 0.295" (7.50mm) |
|
PH9400.655NLTTRANSFORMER 6.48MH SMD Pulse Electronics |
1,790 |
|
Datasheet |
PH9400 | Tape & Reel (TR) | Active | 6.48 mH | - | Surface Mount | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.559" (14.20mm) |
|
|
PH9400.566NLTTRANSFORMER 4.5MH SMD Pulse Electronics |
1,040 |
|
Datasheet |
PH9400 | Tape & Reel (TR) | Active | 4.5 mH | - | Surface Mount | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.559" (14.20mm) |
