Specialty Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Inductance | For Use With/Related Products | Mounting Type | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9385.034NLTXFMR PUSH-PULL RS-485 COMM SMD Pulse Electronics |
259 |
|
Datasheet |
PH9385 | Tape & Reel (TR) | Active | 2.6 mH | RS-485 Communications | Surface Mount | 0.630" L x 0.512" W (16.00mm x 13.00mm) | 0.295" (7.50mm) |
|
|
PH9385.045NLTXFMR PUSH-PULL RS-485 COMM SMD Pulse Electronics |
1,169 |
|
Datasheet |
PH9385 | Tape & Reel (TR) | Active | 3.2 mH | RS-485 Communications | Surface Mount | 0.630" L x 0.512" W (16.00mm x 13.00mm) | 0.295" (7.50mm) |
|
PH9184.021NLTTRANSFORMER 15MH SMD Pulse Electronics |
816 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 15 mH | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) |
|
PE-8271MTRANSFORMER 500UH SMD Pulse Electronics |
281 |
|
Datasheet |
- | Tube | Active | 500 µH | - | Surface Mount | 0.300" L x 0.300" W (7.62mm x 7.62mm) | 0.215" (5.46mm) |
|
PE-65812NLTRANSFORMER 2.5MH SMD Pulse Electronics |
298 |
|
Datasheet |
- | Tube | Active | 2.5 mH | - | Surface Mount | 0.475" L x 0.460" W (12.07mm x 11.68mm) | 0.340" (8.64mm) |
|
|
PG1427.001NLTTRANSFORMER 780UH SMD Pulse Electronics |
2,356 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 780 µH | - | Surface Mount | - | 0.118" (3.00mm) |
|
PH9185.043NLTRANSFORMER 1.26MH MAX253 SMD Pulse Electronics |
400 |
|
Datasheet |
PH9185 | Tray | Active | 1.26 mH | MAX253 | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) |
|
PH9384.021NLTTRANSFORMER 538UH MAX253 SMD Pulse Electronics |
425 |
|
Datasheet |
PH9384 | Tape & Reel (TR) | Active | 538 µH | MAX253 | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) |
|

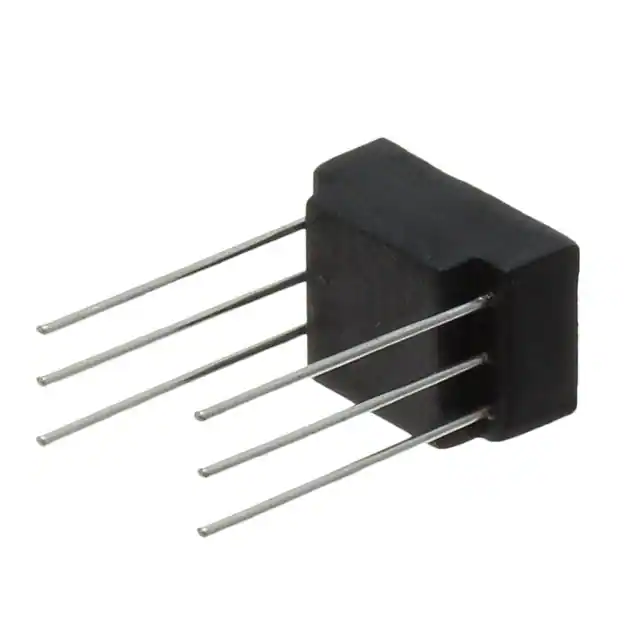

PE-8270NLTRANSFORMER 2MH TH Pulse Electronics |
1,015 |
|
Datasheet |
- | Tube | Active | 2 mH | - | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) |
|
|
PH9184.034NLTTRANSFORMER 6.8MH SMD Pulse Electronics |
361 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 6.8 mH | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) |
