Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

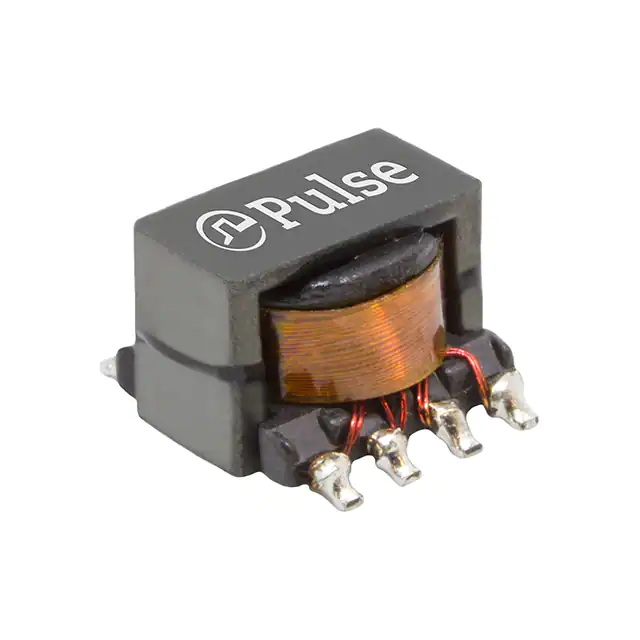

PA4470.002NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
698 |
|
Datasheet |
PA4470 | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | - | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" (6.00mm) | 0.315" L x 0.374" W (8.00mm x 9.50mm) | - |
|
PAG6356.081NLTTRANSF PUSH PULL 10W 8CT:1CT Pulse Electronics |
294 |
|
Datasheet |
PAG6356.XXXNLT | Tape & Reel (TR) | Active | - | Push-Pull Converters | Sn6505x | Texas Instruments | - | - | 5000V | - | 1 ~ 2MHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.492" (12.50mm) | - | Laminated Core |
|
|
PAG6356.082NLTTRANSF PUSH PULL 10W 8CT:2CT Pulse Electronics |
290 |
|
Datasheet |
PAG6356.XXXNLT | Tape & Reel (TR) | Active | - | Push-Pull Converters | Sn6505x | Texas Instruments | - | - | 5000V | - | 1 ~ 2MHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.492" (12.50mm) | - | Laminated Core |
|
|
PAG6356.085NLTTRANSF PUSH PULL 10W 8CT:5CT Pulse Electronics |
158 |
|
Datasheet |
PAG6356.XXXNLT | Tape & Reel (TR) | Active | - | Push-Pull Converters | Sn6505x | Texas Instruments | - | - | 5000V | - | 1 ~ 2MHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.492" (12.50mm) | - | Laminated Core |
|
|
PAG6356.086NLTTRANSF PUSH PULL 10W 8CT:6CT Pulse Electronics |
150 |
|
Datasheet |
PAG6356.XXXNLT | Tape & Reel (TR) | Active | - | Push-Pull Converters | Sn6505x | Texas Instruments | - | - | 5000V | - | 1 ~ 2MHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.492" (12.50mm) | - | Laminated Core |
|
|
PA4470.004NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
700 |
|
Datasheet |
PA4470 | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | - | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" (6.00mm) | 0.315" L x 0.374" W (8.00mm x 9.50mm) | - |
|
|
PA4470.006NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
700 |
|
Datasheet |
PA4470 | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | - | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" (6.00mm) | 0.315" L x 0.374" W (8.00mm x 9.50mm) | - |
|
PH0803CNLXFMR DC/DC CONV SMD Pulse Electronics |
290 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0804CNLXFMR DC/DC CONV SMD Pulse Electronics |
290 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.388" (9.85mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0807CNLXFMR DC/DC CONV SMD Pulse Electronics |
290 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
