Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WNE560FETRES 560 OHM 1% 5W AXIAL Ohmite |
3,499 |
|
Datasheet |
WN | Tape & Reel (TR) | Active | 560 Ohms | ±1% | 5W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.295" Dia x 0.787" L (7.50mm x 20.00mm) | - | 2 | - |
|
OX33GKRES 3.3 OHM 10% 1W AXIAL Ohmite |
1,189 |
|
Datasheet |
OX | Bulk | Obsolete | 3.3 Ohms | ±10% | 1W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|
TWW5J7R5ERES 7.5 OHM 5% 5W RADIAL Ohmite |
1,250 |
|
Datasheet |
TWW | Bulk | Active | 7.5 Ohms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|

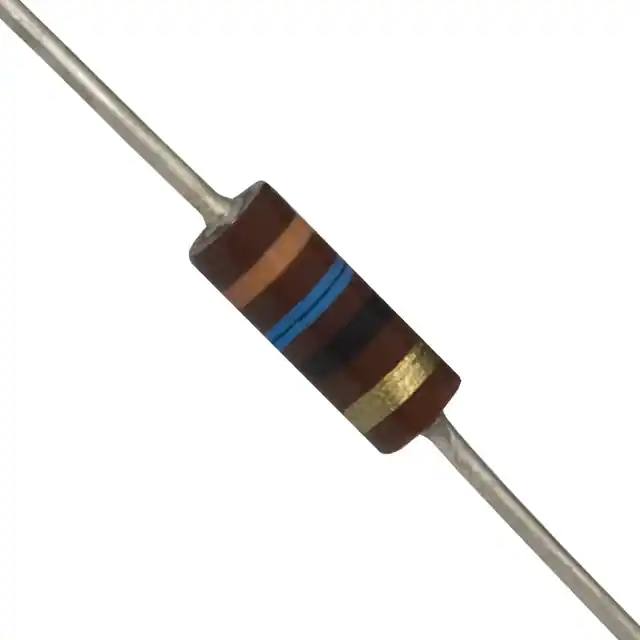

OD360JERES 36 OHM 5% 1/4W AXIAL Ohmite |
2,505 |
|
Datasheet |
Little Demon® OD | Strip | Obsolete | 36 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
TWW10J2R7ERES 2.7 OHM 5% 10W RADIAL Ohmite |
1,790 |
|
Datasheet |
TWW | Bulk | Active | 2.7 Ohms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 2.008" (51.00mm) | 2 | - |
|
OL3325E-R52RES 3.3K OHM 5% 1/2W AXIAL Ohmite |
11,996 |
|
Datasheet |
Little Rebel® OL | Tape & Reel (TR) | Active | 3.3 kOhms | ±5% | 0.5W, 1/2W | Carbon Film | - | -450ppm/°C | - | Axial | 0.118" Dia x 0.354" L (3.00mm x 9.00mm) | - | 2 | - |
|

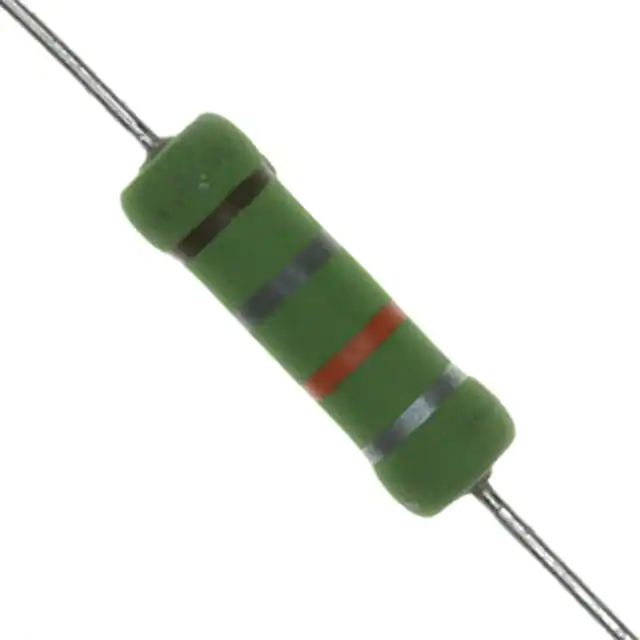

OX183KERES 18K OHM 10% 1W AXIAL Ohmite |
2,090 |
|
Datasheet |
OX | Bulk | Active | 18 kOhms | ±10% | 1W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|
TWM7J7K5ERES 7.5K OHM 5% 7W RADIAL Ohmite |
4,260 |
|
Datasheet |
TWM | Bulk | Active | 7.5 kOhms | ±5% | 7W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | - | - | 2 | - |
|
43F18RE3W 18 OHMS SILICONE 1% Ohmite |
1,056 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 18 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
OY121KRES 120 OHM 10% 2W AXIAL Ohmite |
1,876 |
|
Datasheet |
OY | Bulk | Obsolete | 120 Ohms | ±10% | 2W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | 2 | - |
