Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOX70031003BZERES 100K OHM 0.1% 1/4W AXIAL Ohmite |
100 |
|
Datasheet |
MOX700 | Tray | Active | 100 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 5ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
20J22RERES 22 OHM 5% 10W AXIAL Ohmite |
1,208 |
|
Datasheet |
20 | Bulk | Active | 22 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
45F750ERES 750 OHM 1% 5W AXIAL Ohmite |
4,090 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 750 Ohms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|

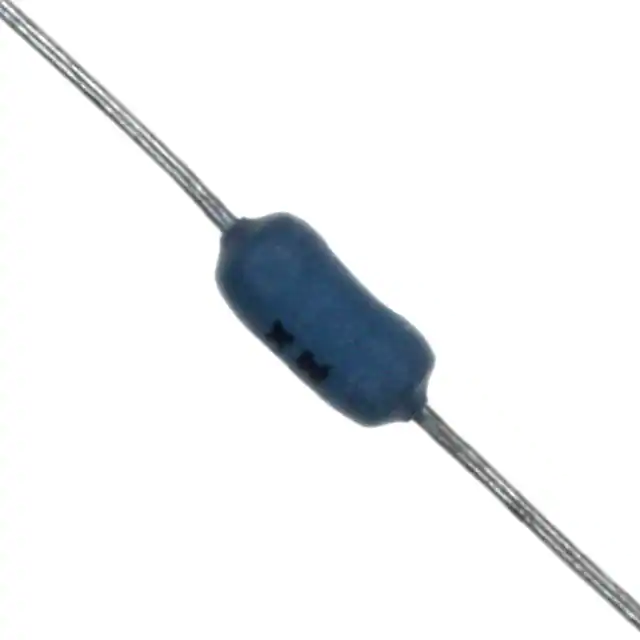

42J47RERES 47 OHM 5% 2W AXIAL Ohmite |
1,791 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 47 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
|
45F15KERES 15K OHM 1% 5W AXIAL Ohmite |
4,076 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 15 kOhms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
|
MOX70031001BZERES 1K OHM 0.1% 1/4W AXIAL Ohmite |
4,789 |
|
Datasheet |
MOX700 | Tray | Active | 1 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 5ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
23J3K0ERES 3K OHM 5% 3W AXIAL Ohmite |
4,386 |
|
Datasheet |
20 | Bulk | Active | 3 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
|
45F5K0ERES 5K OHM 1% 5W AXIAL Ohmite |
3,716 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 5 kOhms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
20J50KRES 50K OHM 5% 10W AXIAL Ohmite |
4,296 |
|
Datasheet |
20 | Bulk | Active | 50 kOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
|
MOX70032500BZERES 250 OHM 0.1% 1/4W AXIAL Ohmite |
2,188 |
|
Datasheet |
MOX700 | Tray | Active | 250 Ohms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 5ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
