Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM104034003FERES 400K OHM 1% 1.5W RADIAL Ohmite |
3,307 |
|
Datasheet |
Slim-Mox | Bulk | Active | 400 kOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|

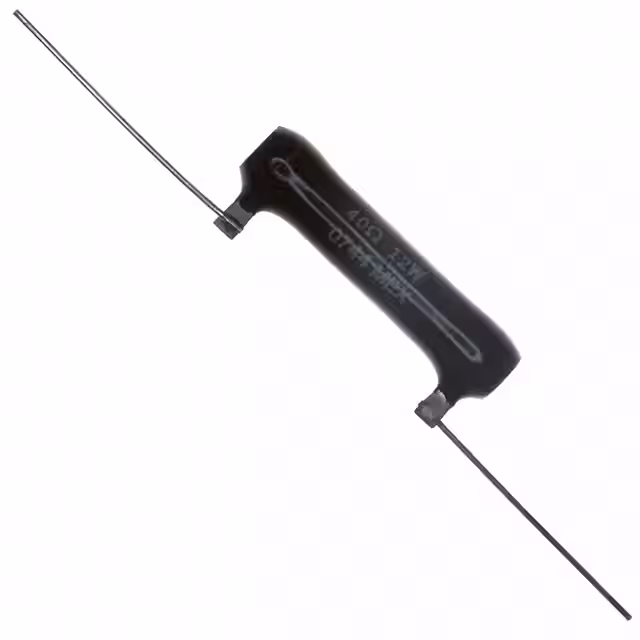

B12J40RERES 40 OHM 5% 12W AXIAL Ohmite |
1,716 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 40 Ohms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|
B12J20RERES 20 OHM 5% 12W AXIAL Ohmite |
1,158 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 20 Ohms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|
AP101 7R5 JRES 7.5 OHM 5% 100W TO247 Ohmite |
1,571 |
|
Datasheet |
ARCOL, AP101 | Tray | Active | 7.5 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
B12J1K0ERES 1K OHM 5% 12W AXIAL Ohmite |
3,826 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 1 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|
B20J250ERES 250 OHM 5% 20W AXIAL Ohmite |
3,743 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 250 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|

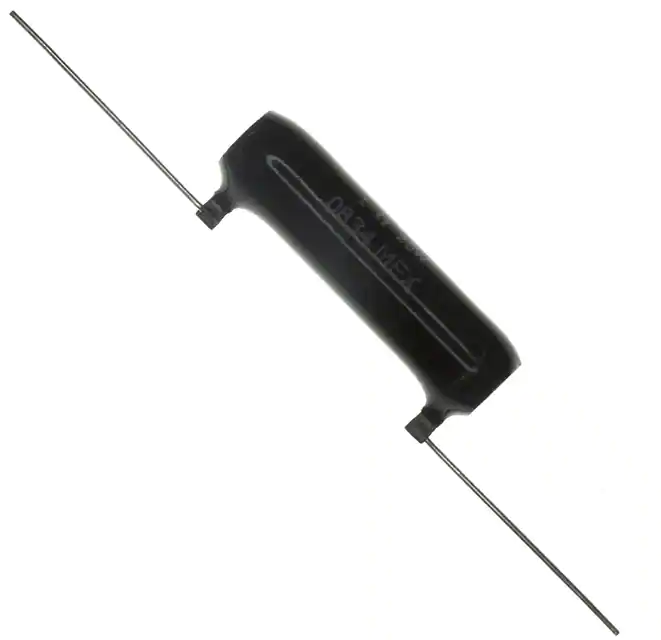

B20J1R0ERES 1 OHM 5% 20W AXIAL Ohmite |
3,293 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 1 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±400ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
TBH25P47R0JERES 47 OHM 5% 25W TO220 Ohmite |
1,064 |
|
Datasheet |
TBH | Bulk | Active | 47 Ohms | ±5% | 25W | Thick Film | Current Sense, Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 150°C | TO-220 | 0.402" L x 0.187" W (10.20mm x 4.75mm) | 0.630" (16.00mm) | 2 | - |
|
|
AP101 620R JRES 620 OHM 5% 100W TO247 Ohmite |
2,905 |
|
Datasheet |
ARCOL, AP101 | Tray | Active | 620 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
B12J5K0ERES 5K OHM 5% 12W AXIAL Ohmite |
2,569 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 5 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
