Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TBH25P100RJERES 100 OHM 5% 25W TO220 Ohmite |
4,492 |
|
Datasheet |
TBH | Bulk | Active | 100 Ohms | ±5% | 25W | Thick Film | Current Sense, Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 150°C | TO-220 | 0.402" L x 0.187" W (10.20mm x 4.75mm) | 0.630" (16.00mm) | 2 | - |
|
B12J500ERES 500 OHM 5% 12W AXIAL Ohmite |
3,089 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 500 Ohms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|
13FPR005ERES 0.005 OHM 1% 3W AXIAL Ohmite |
4,351 |
|
Datasheet |
10 | Bulk | Active | 5 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±100ppm/°C | -55°C ~ 200°C | Axial | 0.200" Dia x 0.626" L (5.08mm x 15.90mm) | - | 4 | - |
|
AP101 3R JRES 3 OHM 5% 100W TO247 Ohmite |
3,287 |
|
Datasheet |
ARCOL, AP101 | Tube | Active | 3 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±300ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
TP810PW50R0JERES 50 OHM 5% 10W RADIAL Ohmite |
1,528 |
|
Datasheet |
TP | Bulk | Active | 50 Ohms | ±5% | 10W | Thick Film | Non-Inductive, Pulse Withstanding | ±100ppm/°C | - | Radial Lead | 1.000" L x 0.240" W (25.40mm x 6.10mm) | 1.020" (25.91mm) | 2 | - |
|
|
TP810PW100RJERES 100 OHM 5% 10W RADIAL Ohmite |
100 |
|
Datasheet |
TP | Bulk | Active | 100 Ohms | ±5% | 10W | Thick Film | Non-Inductive, Pulse Withstanding | ±100ppm/°C | - | - | 1.000" L x 0.240" W (25.40mm x 6.10mm) | 1.020" (25.91mm) | 2 | - |
|
|
TP810PW10R0JERES 10 OHM 5% 10W RADIAL Ohmite |
1,395 |
|
Datasheet |
TP | Bulk | Active | 10 Ohms | ±5% | 10W | Thick Film | Non-Inductive, Pulse Withstanding | ±100ppm/°C | - | Radial Lead | 1.000" L x 0.240" W (25.40mm x 6.10mm) | 1.020" (25.91mm) | 2 | - |
|
B20J25KERES 25K OHM 5% 20W AXIAL Ohmite |
4,278 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 25 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|

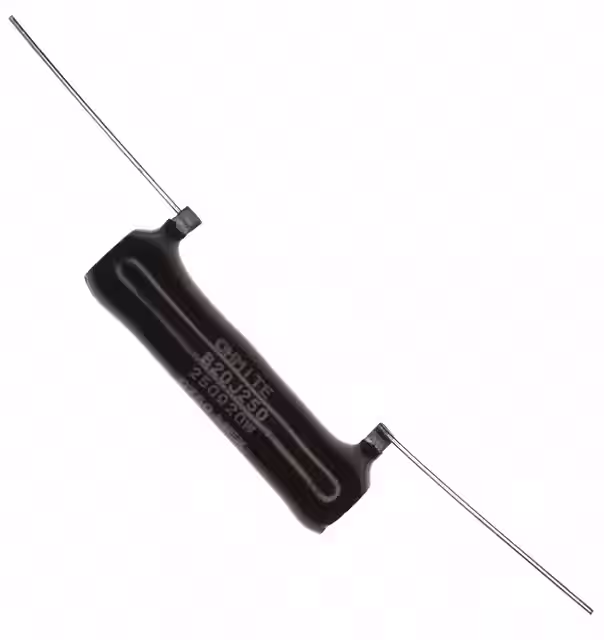

B20J250RES 250 OHM 5% 20W AXIAL Ohmite |
3,553 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 250 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
TAH20PR050JERES 0.05 OHM 5% 20W TO220 Ohmite |
3,008 |
|
Datasheet |
TAH | Tube | Active | 50 mOhms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | - | - | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
