Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20J8K2ERES 8.2K OHM 5% 10W AXIAL Ohmite |
4,390 |
|
Datasheet |
20 | Bulk | Active | 8.2 kOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
41F1K5ERES 1.5K OHM 1% 1W AXIAL Ohmite |
3,732 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1.5 kOhms | ±1% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|

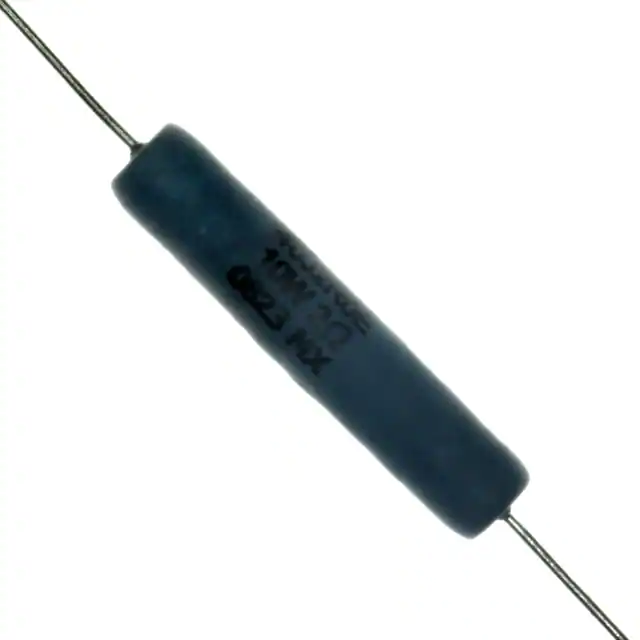

40J2R0ERES 2 OHM 5% 10W AXIAL Ohmite |
3,696 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 2 Ohms | ±5% | 10W | Wirewound | - | ±50ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
43J1K0ERES 1K OHM 5% 3W AXIAL Ohmite |
3,197 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1 kOhms | ±5% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
AP836 33R JRES 33 OHM 5% 35W TO220 Ohmite |
2,827 |
|
Datasheet |
ARCOL, AP836 | Tray | Active | 33 Ohms | ±5% | 35W | Thick Film | Non-Inductive | ±100ppm/°C | -60°C ~ 150°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
SM101031005FERES 10M OHM 1% 1/2W RADIAL Ohmite |
2,933 |
|
Datasheet |
Slim-Mox | Bulk | Active | 10 MOhms | ±1% | 0.5W, 1/2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 180°C | Radial | 0.330" L x 0.100" W (8.38mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
AP836 330R JRES 330 OHM 5% 35W TO220 Ohmite |
1,944 |
|
Datasheet |
ARCOL, AP836 | Tray | Active | 330 Ohms | ±5% | 35W | Thick Film | Non-Inductive | ±100ppm/°C | -60°C ~ 150°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
|
AP836 2R2 JRES 2.2 OHM 5% 35W TO220 Ohmite |
100 |
|
Datasheet |
ARCOL, AP836 | Tube | Active | 2.2 Ohms | ±5% | 35W | Thick Film | Non-Inductive | ±300ppm/°C | -60°C ~ 150°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
OC2K104E-TRRES 100K OHM 10% 1W AXIAL Ohmite |
2,377 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 100 kOhms | ±10% | 1W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|
95J75RERES 75 OHM 5% 5W AXIAL Ohmite |
2,072 |
|
Datasheet |
90 | Bulk | Active | 75 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
