Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B12J40KERES 40K OHM 5% 12W AXIAL Ohmite |
3,029 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 40 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|

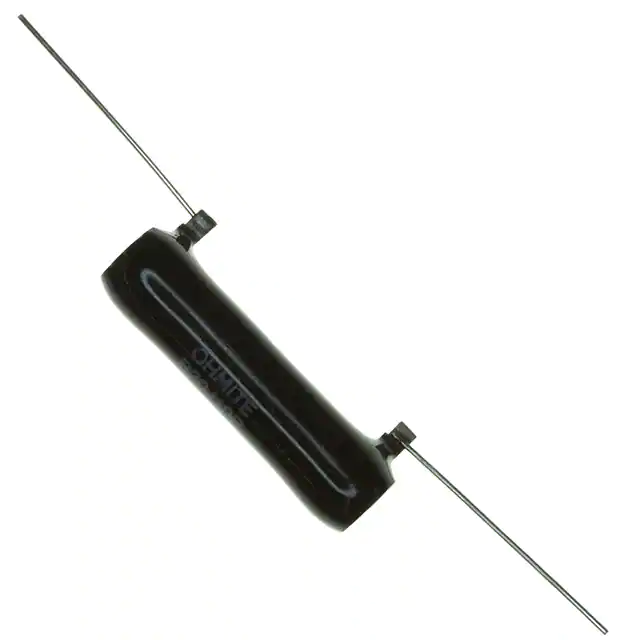

B20J10RRES 10 OHM 5% 20W AXIAL Ohmite |
2,522 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 10 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
|
B12J50KERES 50K OHM 5% 12W AXIAL Ohmite |
4,571 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 50 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|
TAH20PR220JERES 0.22 OHM 5% 20W TO220 Ohmite |
2,328 |
|
Datasheet |
TAH | Tube | Active | 220 mOhms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | - | - | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
TP810PW1K00JERES 1K OHM 5% 10W RADIAL Ohmite |
3,762 |
|
Datasheet |
TP | Bulk | Active | 1 kOhms | ±5% | 10W | Thick Film | Non-Inductive, Pulse Withstanding | ±50ppm/°C | - | Radial Lead | 1.000" L x 0.240" W (25.40mm x 6.10mm) | 1.020" (25.91mm) | 2 | - |
|
254AS201KDSRES 200 OHM 10% 11W AXIAL Ohmite |
3,705 |
|
Datasheet |
200 | Box | Active | 200 Ohms | ±10% | 11W | Ceramic | Moisture Resistant, Non-Inductive, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.437" Dia x 4.126" L (11.10mm x 104.80mm) | - | 2 | - |
|
|
254AS820KDSRES 82 OHM 10% 11W AXIAL Ohmite |
1,952 |
|
Datasheet |
200 | Box | Active | 82 Ohms | ±10% | 11W | Ceramic | Moisture Resistant, Non-Inductive, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.437" Dia x 4.126" L (11.10mm x 104.80mm) | - | 2 | - |
|
|
251AS250KDSRES 25 OHM 10% 3.5W AXIAL Ohmite |
2,161 |
|
Datasheet |
200 | Box | Active | 25 Ohms | ±10% | 3.5W | Ceramic | Moisture Resistant, Non-Inductive, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.437" Dia x 1.126" L (11.10mm x 28.60mm) | - | 2 | - |
|
|
106BA503KDSRES 50K OHM 10% 10W AXIAL Ohmite |
3,200 |
|
Datasheet |
100 | Box | Active | 50 kOhms | ±10% | 10W | Ceramic | Moisture Resistant, Non-Inductive, Pulse Withstanding | - | -55°C ~ 230°C | Axial | 0.311" Dia x 6.126" L (7.90mm x 155.60mm) | - | 2 | - |
|
|
106BA105KDSRES 1M OHM 10% 10W AXIAL Ohmite |
3,473 |
|
Datasheet |
100 | Box | Active | 1 MOhms | ±10% | 10W | Ceramic | Moisture Resistant, Non-Inductive, Pulse Withstanding | - | -55°C ~ 230°C | Axial | 0.311" Dia x 6.126" L (7.90mm x 155.60mm) | - | 2 | - |
