Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TA205PA2R40JERES 2.4 OHM 5% 5W POWERCHIP Ohmite |
3,310 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 2.4 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|

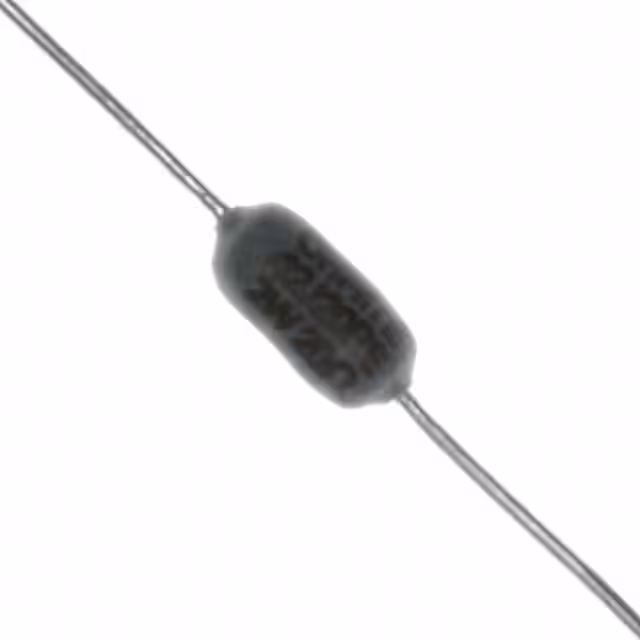

42J20RERES 20 OHM 5% 2W AXIAL Ohmite |
2,765 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 20 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
TWW20JR27ERES 0.27 OHM 5% 20W RADIAL Ohmite |
4,753 |
|
Datasheet |
TWW | Box | Active | 270 mOhms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|

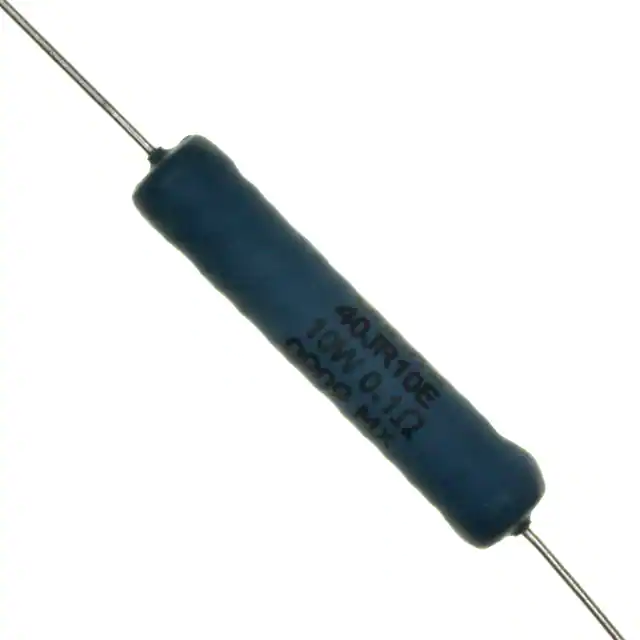

40JR10ERES 0.1 OHM 5% 10W AXIAL Ohmite |
3,259 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 100 mOhms | ±5% | 10W | Wirewound | - | ±90ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
MOX70035761AZERES 5.76K OHM 0.05% 1/4W AXIAL Ohmite |
2,650 |
|
Datasheet |
MOX700 | Tray | Active | 5.76 kOhms | ±0.05% | 0.25W, 1/4W | Metal Film | - | 5ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
25J6K8ERES 6.8K OHM 5% 5W AXIAL Ohmite |
4,147 |
|
Datasheet |
20 | Bulk | Active | 6.8 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
|
MOX70037500BZERES 750 OHM 0.1% 1/4W AXIAL Ohmite |
3,363 |
|
Datasheet |
MOX700 | Tray | Active | 750 Ohms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 5ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
23J3K9ERES 3.9K OHM 5% 3W AXIAL Ohmite |
2,313 |
|
Datasheet |
20 | Bulk | Active | 3.9 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
|
MOX70031004BYERES 1M OHM 0.1% 1/4W AXIAL Ohmite |
2,949 |
|
Datasheet |
MOX700 | Tray | Active | 1 MOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 10ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
|
TA205PA200RJERES 200 OHM 5% 5W POWERCHIP Ohmite |
3,690 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 200 Ohms | ±5% | 5W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
