Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B8J5K0ERES 5K OHM 5% 8W AXIAL Ohmite |
1,095 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 5 kOhms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
|
TA810PW15R0JERES 15 OHM 5% 10W POWERCHIP Ohmite |
3,078 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 15 Ohms | ±5% | 10W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 1.085" L x 0.240" W (27.56mm x 6.10mm) | 1.020" (25.91mm) | 4 | - |
|
AP101 5R6 JRES 5.6 OHM 5% 100W TO247 Ohmite |
4,215 |
|
Datasheet |
ARCOL, AP101 | Tube | Active | 5.6 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
TA810PW200RJERES 200 OHM 5% 10W POWERCHIP Ohmite |
3,851 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 200 Ohms | ±5% | 10W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 1.085" L x 0.240" W (27.56mm x 6.10mm) | 1.020" (25.91mm) | 4 | - |
|
13FPR025ERES 0.025 OHM 1% 3W AXIAL Ohmite |
1,463 |
|
Datasheet |
10 | Bulk | Active | 25 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200" Dia x 0.626" L (5.08mm x 15.90mm) | - | 4 | - |
|
|
13FPR020ERES 0.02 OHM 1% 3W AXIAL Ohmite |
4,387 |
|
Datasheet |
10 | Bulk | Active | 20 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200" Dia x 0.626" L (5.08mm x 15.90mm) | - | 4 | - |
|

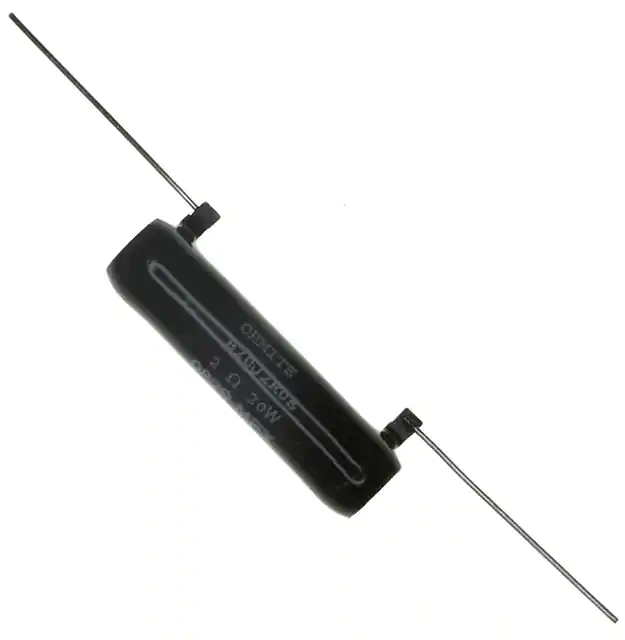

B20J2R0ERES 2 OHM 5% 20W AXIAL Ohmite |
1,498 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 2 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±400ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
TA025PW20R0JERES 20 OHM 5% 25W POWERCHIP Ohmite |
3,071 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 20 Ohms | ±5% | 25W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 2.220" L x 0.240" W (56.39mm x 6.10mm) | 1.189" (30.21mm) | 4 | - |
|

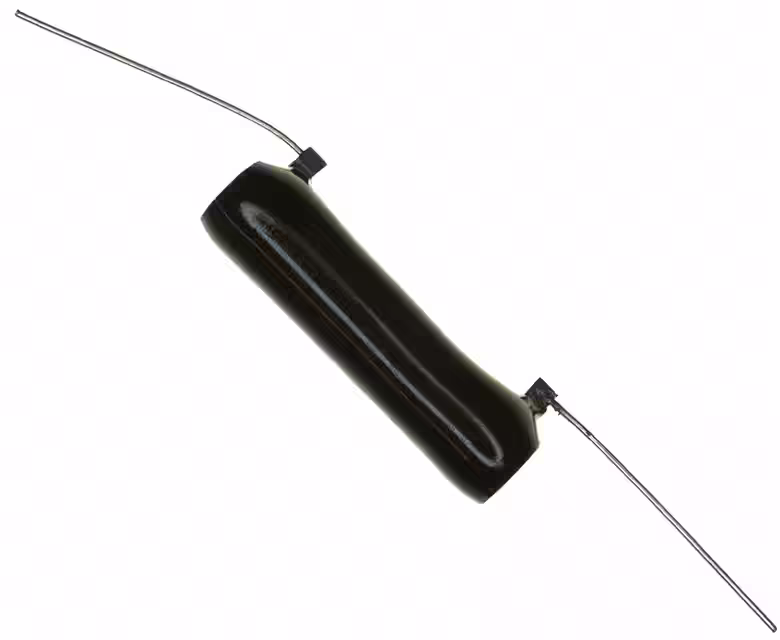

B20J100RES 100 OHM 5% 20W AXIAL Ohmite |
3,852 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 100 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|

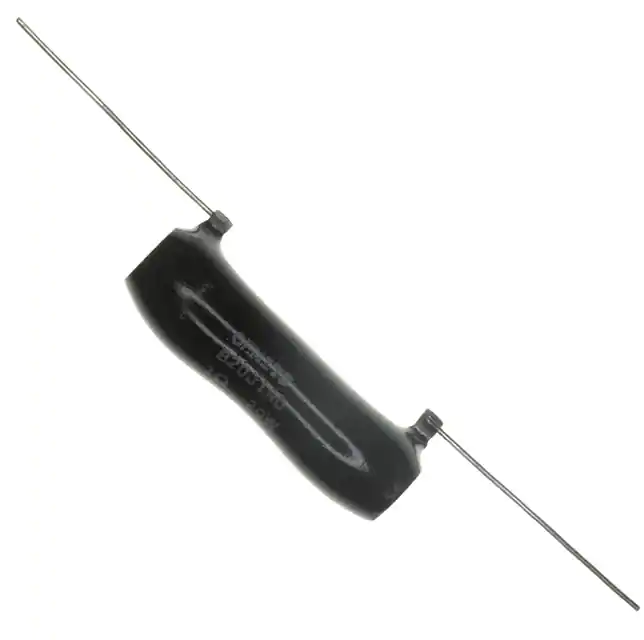

B20J1R0RES 1 OHM 5% 20W AXIAL Ohmite |
4,591 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 1 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±400ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
