Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B8J2K5ERES 2.5K OHM 5% 8W AXIAL Ohmite |
1,797 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 2.5 kOhms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
|
TEH100MR075JERES 0.075 OHM 5% 100W TO247 Ohmite |
3,157 |
|
Datasheet |
TEH100 | Tube | Active | 75 mOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | - | - | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
B12J10RERES 10 OHM 5% 12W AXIAL Ohmite |
3,403 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 10 Ohms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|

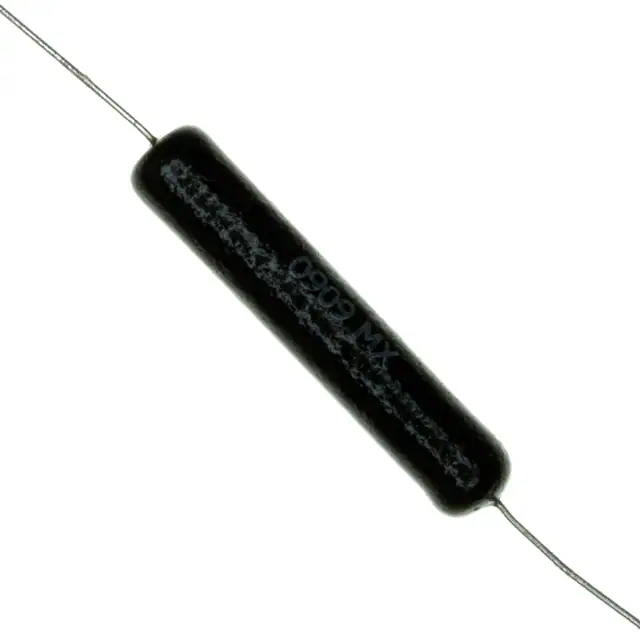

90J4K0ERES 4K OHM 5% 11W AXIAL Ohmite |
4,348 |
|
Datasheet |
90 | Bulk | Active | 4 kOhms | ±5% | 11W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.343" Dia x 1.811" L (8.70mm x 46.00mm) | - | 2 | - |
|
TBH25P1K50JERES 1.5K OHM 5% 25W TO220 Ohmite |
2,732 |
|
Datasheet |
TBH | Bulk | Active | 1.5 kOhms | ±5% | 25W | Thick Film | Current Sense, Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 150°C | TO-220 | 0.402" L x 0.187" W (10.20mm x 4.75mm) | 0.630" (16.00mm) | 2 | - |
|
|
B8J300ERES 300 OHM 5% 8W AXIAL Ohmite |
1,995 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 300 Ohms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
|
|
B8J35RERES 35 OHM 5% 8W AXIAL Ohmite |
1,558 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 35 Ohms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
|

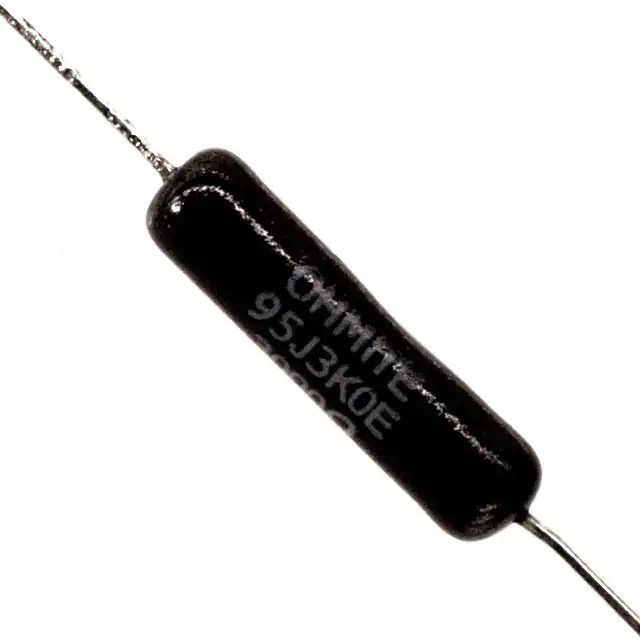

95J3K0ERES 3K OHM 5% 5W AXIAL Ohmite |
4,684 |
|
Datasheet |
90 | Bulk | Active | 3 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
AP101 5K6 JRES 5.6K OHM 5% 100W TO247 Ohmite |
1,709 |
|
Datasheet |
ARCOL, AP101 | Tray | Active | 5.6 kOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
B12J75RERES 75 OHM 5% 12W AXIAL Ohmite |
2,200 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 75 Ohms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
