Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TA205PA24R0JERES 24 OHM 5% 5W POWERCHIP Ohmite |
1,994 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 24 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
43F47RERES 47 OHM 1% 3W AXIAL Ohmite |
3,032 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 47 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
41F3R0ERES 3 OHM 1% 1W AXIAL Ohmite |
3,135 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 3 Ohms | ±1% | 1W | Wirewound | - | ±50ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|

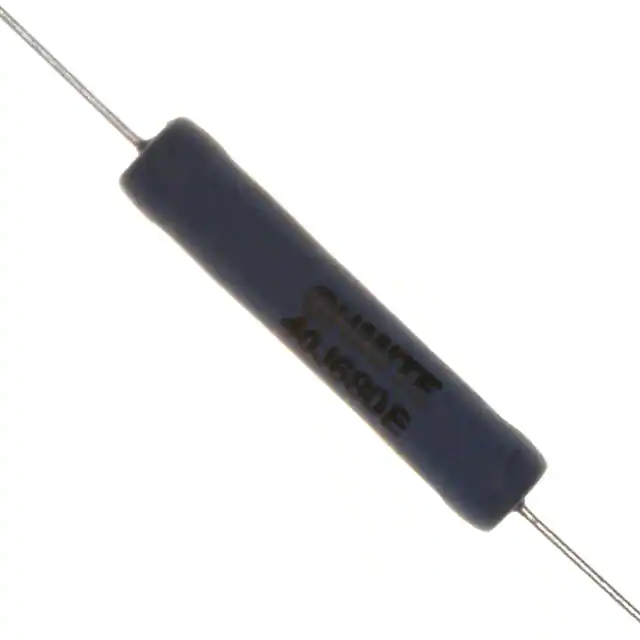

40J680ERES 680 OHM 5% 10W AXIAL Ohmite |
4,216 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 680 Ohms | ±5% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
MOX5001502JSERES 15K OHM 5% 2W AXIAL Ohmite |
2,138 |
|
Datasheet |
MOX500 | Bulk | Active | 15 kOhms | ±5% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
|
MOX5004301JSERES 4.3K OHM 5% 2W AXIAL Ohmite |
3,001 |
|
Datasheet |
MOX500 | Bulk | Active | 4.3 kOhms | ±5% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
MOX70034991AYERES 4.99K OHM 0.05% 1/4W AXIAL Ohmite |
1,206 |
|
Datasheet |
MOX700 | Tray | Active | 4.99 kOhms | ±0.05% | 0.25W, 1/4W | Metal Film | - | 10ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
45J200ERES 200 OHM 5% 5W AXIAL Ohmite |
3,298 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 200 Ohms | ±5% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
|
TA205PA12R0JERES 12 OHM 5% 5W POWERCHIP Ohmite |
4,265 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 12 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
|
MOX70031000BYERES 100 OHM 0.1% 1/4W AXIAL Ohmite |
3,796 |
|
Datasheet |
MOX700 | Tray | Active | 100 Ohms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 10ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
