Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TA205PA6R80JERES 6.8 OHM 5% 5W POWERCHIP Ohmite |
3,415 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 6.8 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
B8J6K0ERES 6K OHM 5% 8W AXIAL Ohmite |
3,388 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 6 kOhms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
|
B20J2K0RES 2K OHM 5% 20W AXIAL Ohmite |
3,056 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 2 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
41F270ERES 270 OHM 1% 1W AXIAL Ohmite |
3,212 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 270 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
|
B12J3R0ERES 3 OHM 5% 12W AXIAL Ohmite |
4,118 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 3 Ohms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±400ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|

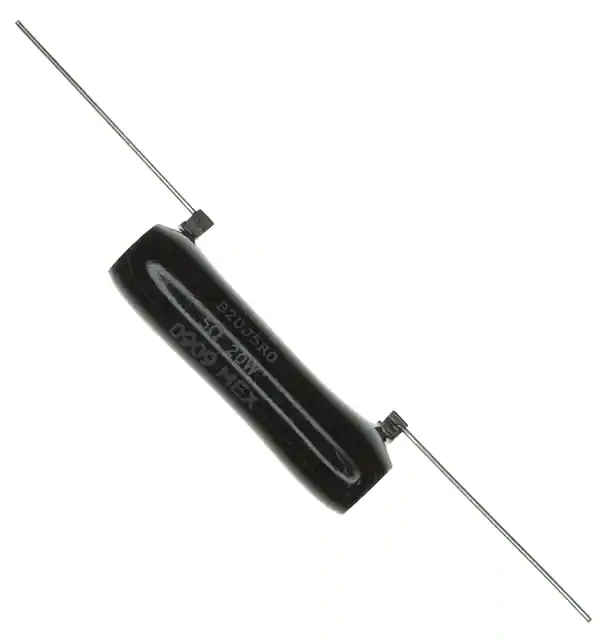

B20J5R0RES 5 OHM 5% 20W AXIAL Ohmite |
2,747 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 5 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±400ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
TCH35P1R00JERES 1 OHM 5% 35W TO220 Ohmite |
1,475 |
|
Datasheet |
TCH | Tube | Active | 1 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±300ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
TCH35P510RJERES 510 OHM 5% 35W TO220 Ohmite |
2,135 |
|
Datasheet |
TCH | Tube | Active | 510 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
|
TA205PA39R0JERES 39 OHM 5% 5W POWERCHIP Ohmite |
4,635 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 39 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
TA810PW10R0JERES 10 OHM 5% 10W POWERCHIP Ohmite |
2,688 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 10 Ohms | ±5% | 10W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 1.085" L x 0.240" W (27.56mm x 6.10mm) | 1.020" (25.91mm) | 4 | - |
