Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OC2K390E-TRRES 39 OHM 10% 1.7W AXIAL Ohmite |
3,093 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 39 Ohms | ±10% | 1.7W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|
|
OC2K330E-TRRES 33 OHM 10% 1.7W AXIAL Ohmite |
4,854 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 33 Ohms | ±10% | 1.7W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|
|
OC1K181E-TRRES 180 OHM 10% 1.2W AXIAL Ohmite |
1,994 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 180 Ohms | ±10% | 1.2W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.650" L (7.90mm x 16.50mm) | - | 2 | - |
|

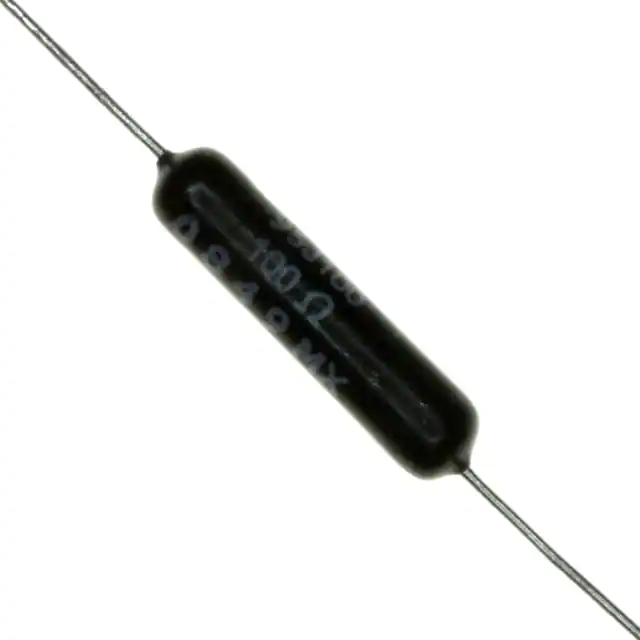

95J100RES 100 OHM 5% 5W AXIAL Ohmite |
1,925 |
|
Datasheet |
90 | Bulk | Active | 100 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
B12J15RERES 15 OHM 5% 12W AXIAL Ohmite |
3,363 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 15 Ohms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|
|
B12J25RERES 25 OHM 5% 12W AXIAL Ohmite |
4,946 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 25 Ohms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|
AP101 30R JRES 30 OHM 5% 100W TO247 Ohmite |
4,256 |
|
Datasheet |
ARCOL, AP101 | Tray | Active | 30 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
AP101 3K9 JRES 3.9K OHM 5% 100W TO247 Ohmite |
1,827 |
|
Datasheet |
ARCOL, AP101 | Tray | Active | 3.9 kOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
AP101 6K8 JRES 6.8K OHM 5% 100W TO247 Ohmite |
3,679 |
|
Datasheet |
ARCOL, AP101 | Tray | Active | 6.8 kOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
AP101 56R JRES 56 OHM 5% 100W TO247 Ohmite |
4,592 |
|
Datasheet |
ARCOL, AP101 | Tray | Active | 56 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
